CHIRON FZ 08 W

Photo Gallery

CHIRON - FZ 08 WPL-MIL-CHI-1998-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

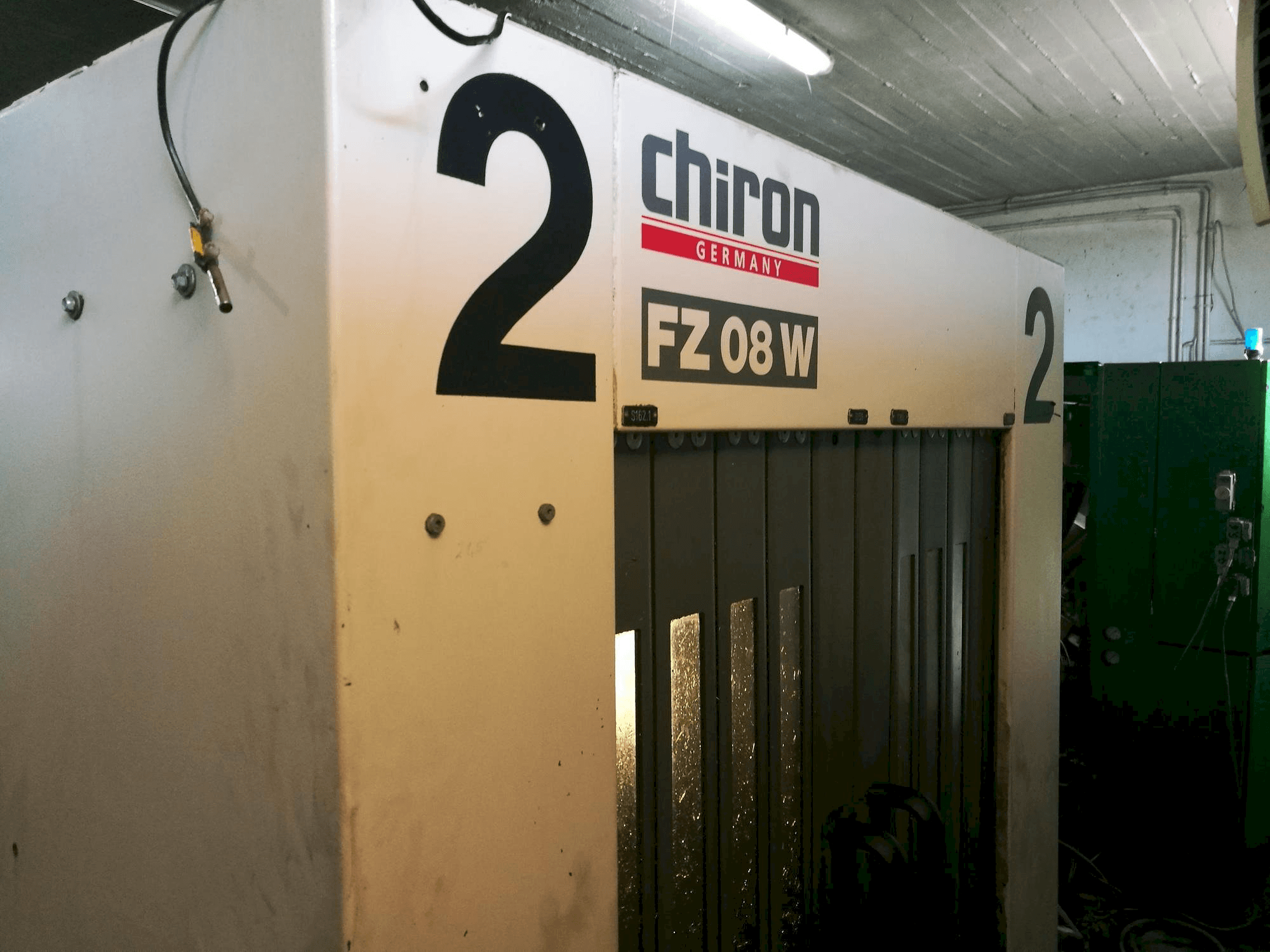

Chiron FZ 08 W Vertical Machining Center

Show in original language

This Chiron FZ 08 W Vertical Machining Center was built in Germany in 1998 and is operated through a FANUC Series 21-M control unit. This model counts with a nose tool HSK 32 and ATC 12 pcs

Overview

brand: CHIRON
year: 1998
MODEL: FZ 08 W
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - CHIRON FZ 08 W

General Data

Measurements width: 1400 mm
Measurements depth: 2500 mm
Measurements height: 2250 mm
Machine weight: 2200 kg

Control Unit

Model: Series 21-M
Brand: FANUC

Movement

X-AXIS Movement: 300 mm
Y-AXIS Movement: 250 mm
Z-AXIS Movement: 250 mm

Table

Outer length: 550 mm
Outer width: 300 mm

Media

Main electronic connection: 400V 50/60 Hz
Power consumption: 11 kVA
Internal cooling: Yes

Additional Information

Additional equipment

2 x 4th axis peiseler rt 100
Nose tool HSK 32
ATC 12 pcs

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
