- Chiron DZ 18 S Vertical Machining Center

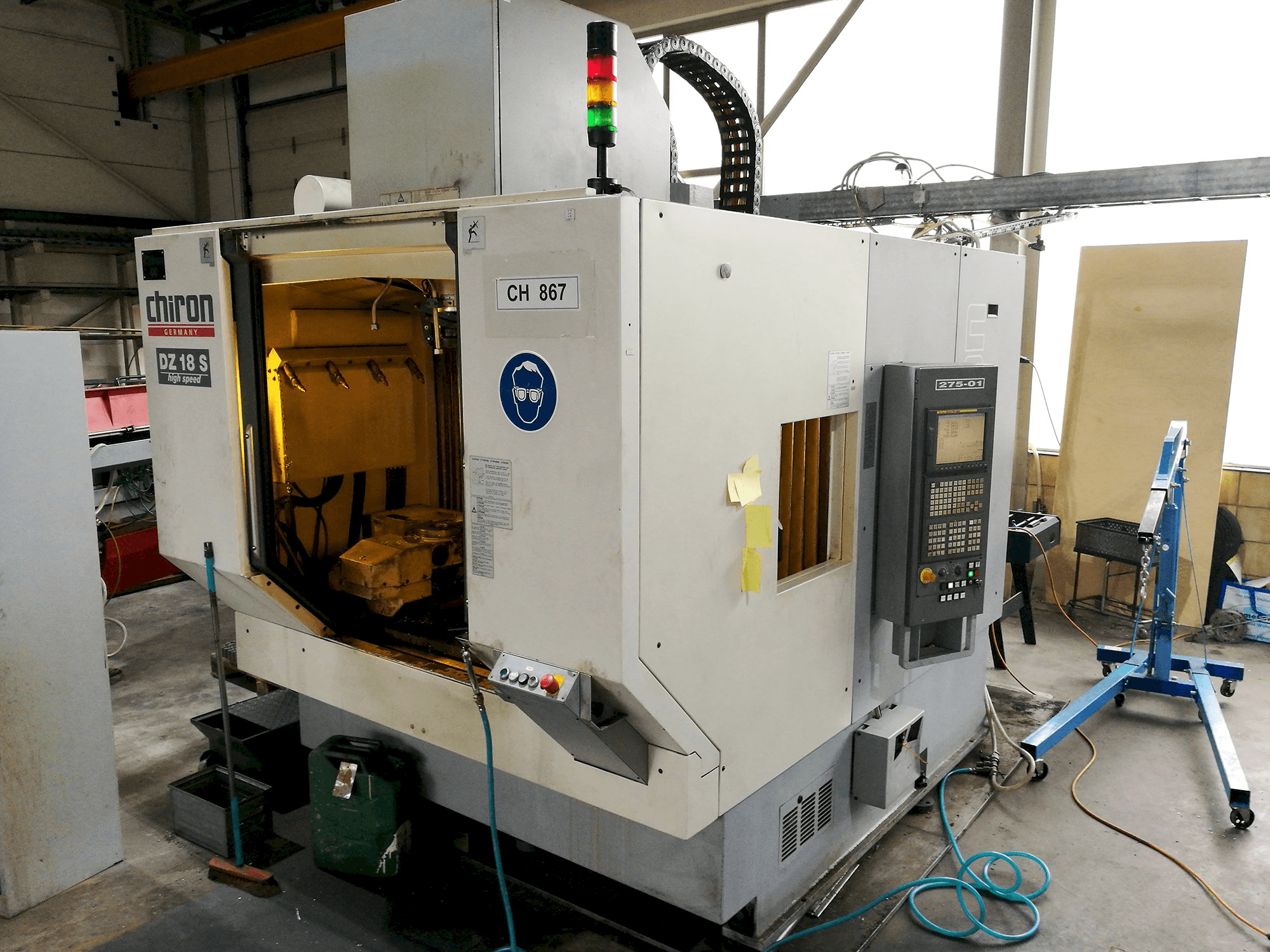

This Chiron DZ 18 S Vertical Machining Center was made in 2007 in Germany and counts with a production history of 47167 working hours. Equipped with a FANUC 18i-MB5, this single spindled machine counts with a 4th and 5th axis. During the past, it has mainly worked with cast iron up to 90 mm of thickness.
Overview
- brand: CHIRON
- year: 2007
- MODEL: DZ 18 S
- production hours: 47167
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - CHIRON DZ 18 S
Control Unit
- Control Brand: FANUC
- Control Model: 18i-MB5
Dimensions
- Machine Depth: 1785 mm
- Machine Height: 3192 mm
- Machine Weight: 6500 kg
- Table Length: 1100 mm
- Table Width: 600 mm
Movement
- X-axis Travel: 800 mm
- Y-axis Travel: 650 mm
- Z-axis Travel: 600 mm
Technical Specification
- Through-spindle Coolant: Yes
Additional Information
Machine Benefits
Technical Machine Benefits
- 4th and 5th axis
- 2nd spindle
Machine History
End product
Axle mount for agricultural machinery
Material thickness
90 mm
Material type
Cast iron
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
