- Used Lathes CHEVALIER FVL-1250VTC+C - 2015 - for sale | gindumac.com

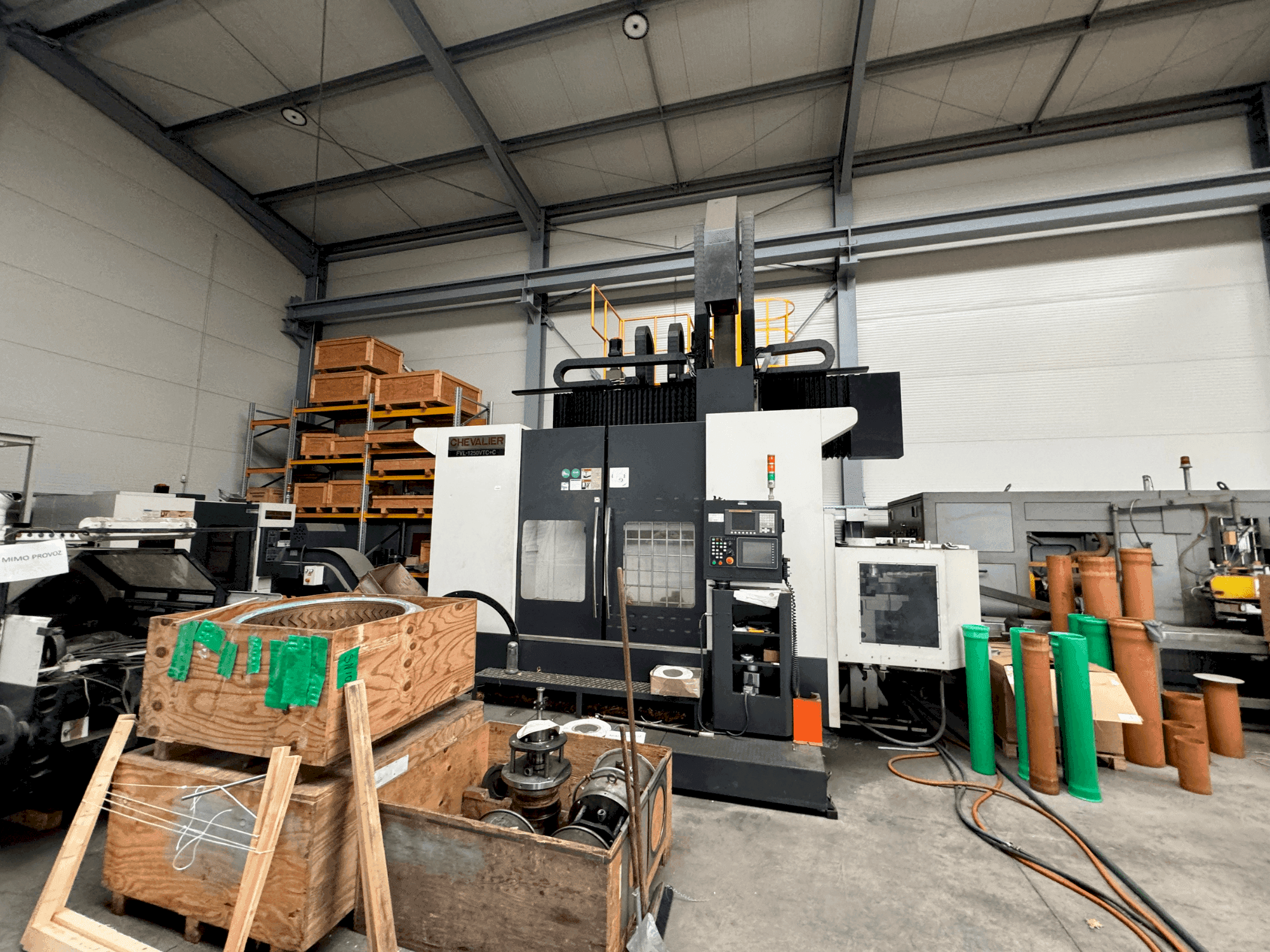

This 4-Axis lathe manufactured in 2015, the CHEVALIER FVL-1250VTC+C, is equipped with high-precision capabilities. It boasts a max. swing and cutting diameter of 1,600 mm, and a turning height of 1,200 mm. With a spindle speed up to 2,500 rpm and a robust table capable of supporting 8,000 kg, this machine ensures high-torque operations. The addition of a C Axis with a minimum index angle of 0.001° enhances versatility. The CHEVALIER FVL-1250VTC+C machine we have for sale is like new, having only been tested. Contact us to learn more about this opportunity.
Overview
- brand: Chevalier
- year: 2015
- MODEL: FVL-1250VTC+C
- application type: Turning
- Location: Czech Republic
- machine type: Vertical Turning Machine
Technical Information - Chevalier FVL-1250VTC+C
Dimensions
- Machine Depth: 5900 mm
- Machine Height: 5580 mm
- Machine Weight: 22000 kg
- Table Load: 8000 kg
Movement
- Number of Axes: 4
- X-axis Travel: 665 mm
- Y-axis Travel: 960 mm
- Z-axis Travel: 900 mm
Technical Specification
- Spindle Speed: 2500 RPM
Additional Information
Additional equipment
- Tool shank BT50
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
