- CASTEK SD5030CE wire eroding machine
Show in original language

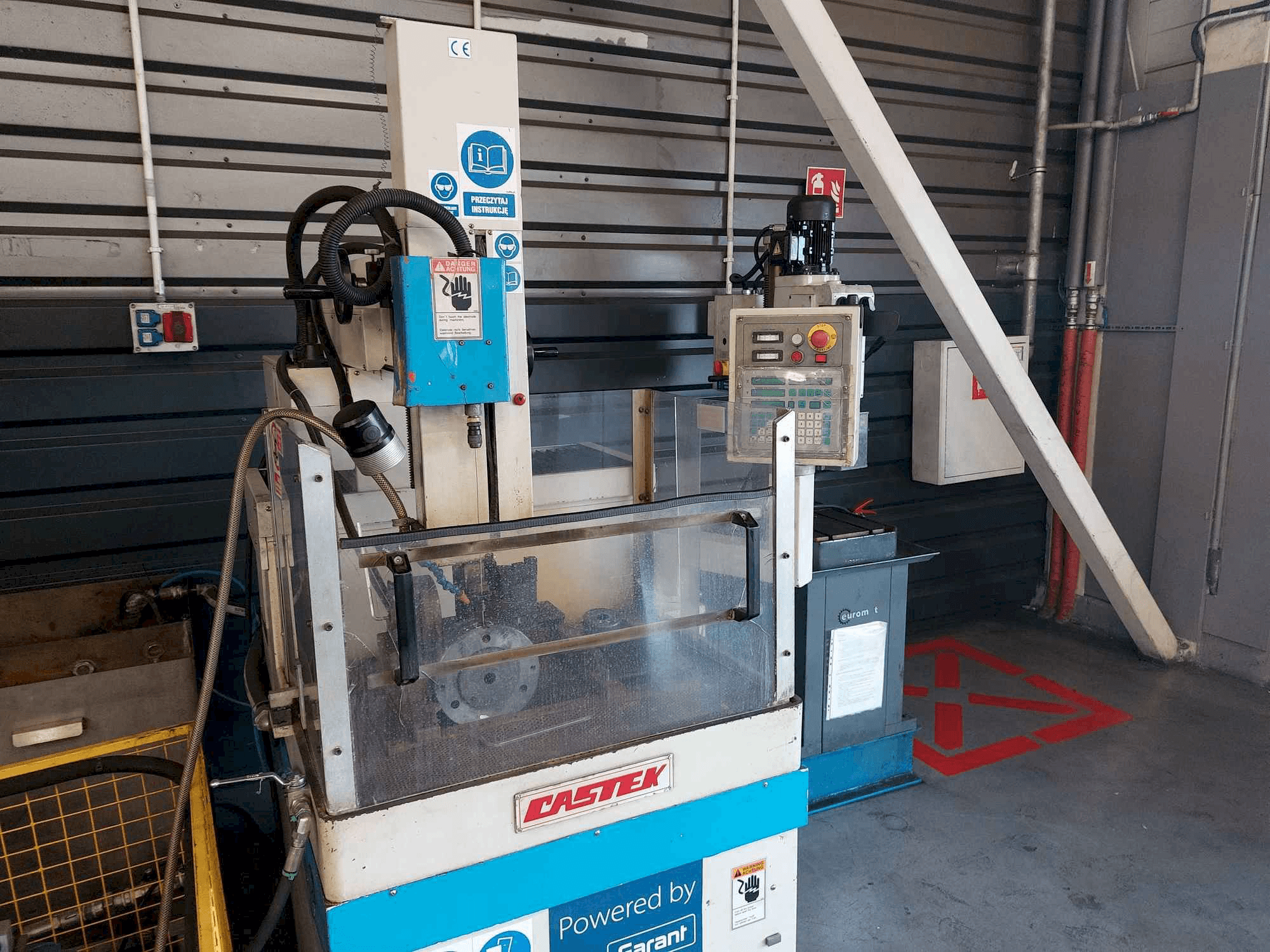

This CASTEK SD5030CE wire eroding machine was manufactured in the year 2008. The machine has a resolution of Linear scales of 5μm.
Overview
- brand: CASTEK
- year: 2008
- MODEL: SD5030CE
- application type: Other Sheet Metal Machinery
- Location: Poland
- machine type: Sheet Metal Machine
Technical Information - CASTEK SD5030CE
Dimensions
- Machine Depth: 1100 mm
- Machine Height: 1200 mm
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Inch/metric conversion: standard
- Resolution of linear scales: 5μm
- Inch/metric conversion: standard
- Position feedback: linear scales on x & y
- Manually speed select: 3 steps (slow, middle & rapid)
- Edge finding: standard
- Inc/ abs coordinate: standard
- Machining time display: standard
- Transformer 5kva – 1 pc oil seal 43228 – 3 pcs seal set 34153 – 1 pc cap board 091578 – 1 pc low level board 101261 – 1 pc board sdt-134 1010467 – 1 pc board sdt-133 1010457 – 1 pc board sdt-232 109700 – 1 pc dr_d board 100157 - 1 pc sprocket 103361-00 – 4 pcs
Technical Machine Benefits
- Input power selection: 200v, 220v, 380v, 415v, 440v, (575v), 3 phases & pe, 50/60hz.
- Max. Power ratio: (4. 5kav fd power option) / (4kva sd power option)
- Max. Machining current: (50a fd power option) / (25 a sd power option)
- On time setting range: 99 steps
- Off time setting range: 99 steps
- Ip setting range: 16 steps (0 ~ 15)
- Stab setting range: 10 steps (0 ~ 9)
- Gap setting range: 10 steps (0 ~ 9)
- Servo speed setting range: 10 steps (0 ~ 9)
- Capacitor select range: 32 steps (0 ~31)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
