Bystronic - Bystar Fiber 3015 6KW + ByTrans ExtendedDK-LAS-BYS-2019-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- Bystronic Bystar Fiber 3015 6KW + ByTrans Extended Fiber Laser Cutting Machine

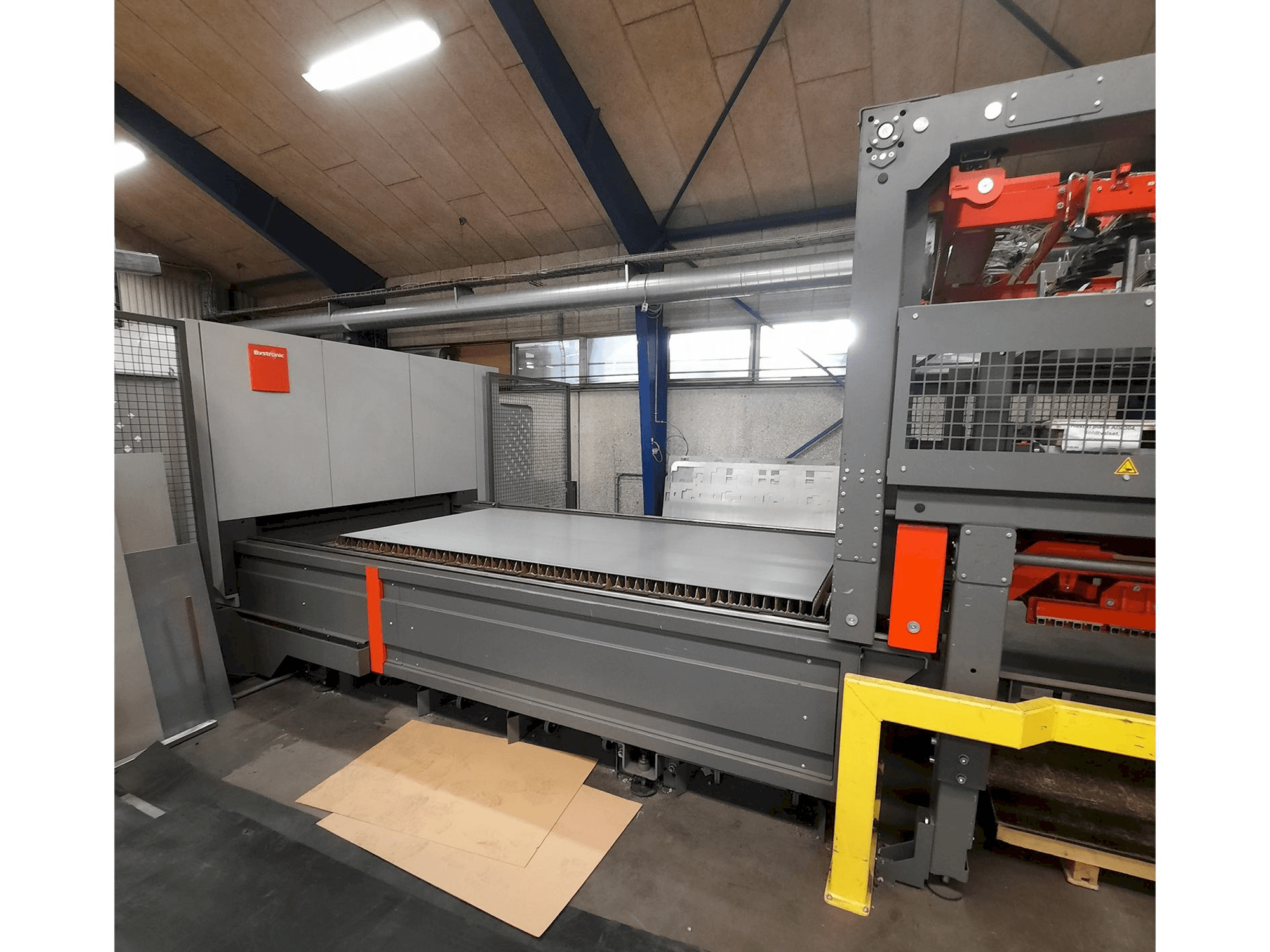

This Bystronic Bystar Fiber 3015 6KW + ByTrans Extended Fiber Laser Cutting Machine was made in the year 2019 in Switzerland. This machine has been working for 9500 hours of which 4000 are cutting hours. It works with a laser power of 6 kW. Includes ByTrans Extended 3015 with 2 cassettes incl. copper gratings.
Overview
- brand: Bystronic
- year: 2019
- MODEL: Bystar Fiber 3015 6KW + ByTrans Extended
- production hours: 9500
- application type: Cutting
- Location: Denmark
- machine type: Fiber Laser Cutting Machine
- availability: Sold
Technical Information - Bystronic Bystar Fiber 3015 6KW + ByTrans Extended
General Data
- Measurements width: 5700 mm
- Measurements depth: 12150 mm
- Measurements height: 3200 mm
- Machine weight: 11000 kg
Main drive
- Laserpower: 6 kW
Workpiece
- Workpiece weight: 1100 kg
Table
- Outer length: 3000 mm
- Outer width: 1500 mm
Max Material thickness
- Steel: 25 mm
- Stainless steel: 30 mm
- Aluminum: 30 mm
Additional Equipment
- - Detection Eye
- - Dust extraction system with barrel
- - Automatic nozzle changer with 64 positions
- - Workpiece and cross conveyor in the cutting area
- - Collection bins below the feed area (on across)
- - ByTrans Extended 3015 with 2 cassettes incl. copper gratings
- - Extra suction cup for plate separation for ByTrans Extended
Additional Information
- Technical Machine Benefits:
- - Cuttinf area x 3100 mm / cutting area y 1580 mm
- - Maximum simultaneous positioning speed 169 m/min
- - Laser shards fiber 6000
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
