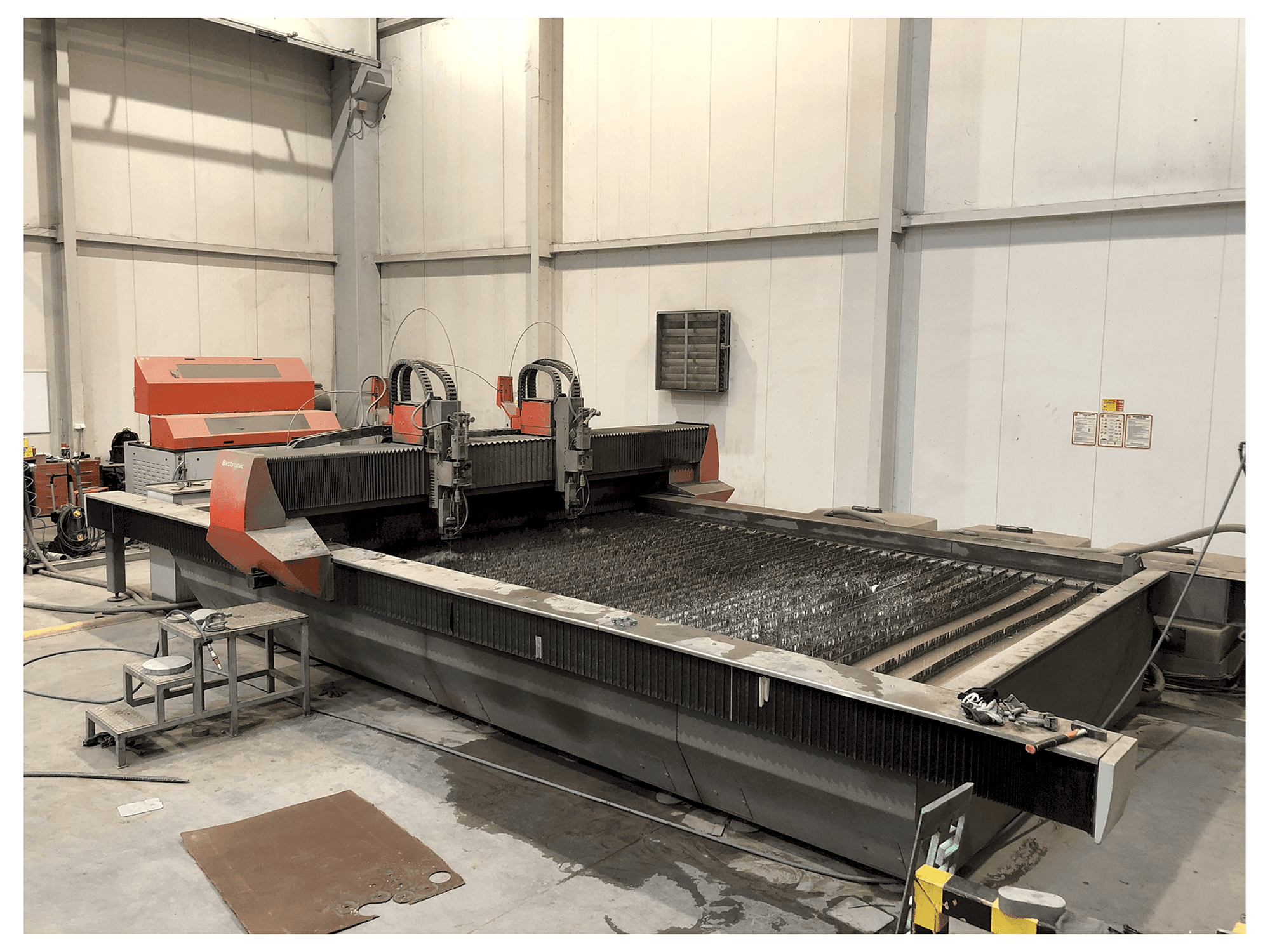

Front view of Bystronic ByJet Flex 6030 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Bystronic ByJet Flex 6030

Photo Gallery

Bystronic - ByJet Flex 6030PL-WAT-BYS-2015-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Bystronic ByJet Flex 6030 Waterjet cutting machine

Show in original language

This Bystronic ByJet Flex 6030 Waterjet cutting machine was made in the year 2015 and has 18986 working hours. It is equipped with a Bystronic ByMotion CNC ByJet control unit. The machine has a Max. cutting speed of 50 m/min and a Max. pressure of 5300 bar. The machine is in very good condition. Full documentation is available.

Overview

brand: Bystronic
year: 2015
MODEL: ByJet Flex 6030
production hours: 18986
application type: Cutting
Location: Poland
machine type: Waterjet Cutting Machine
control unit brand: BYSTRONIC

Technical Information - Bystronic ByJet Flex 6030

General Data

Measurements width: 11100 mm
Measurements depth: 7100 mm
Measurements height: 2750 mm

Control Unit

Model: ByMotion CNC ByJet
Brand: BYSTRONIC

Table

Table load: 27000 kg

Media

Main electronic connection: 3 x 400V / 50Hz

Additional Equipment

- ByVision operating terminal
- Light barrier
- Cutting carriage for second cutting head
- 2 x 2D cutting head including height sensor
- ByPump Ultra+ with oil/air heat exchanger
- Collection of parts
- Automatic sludge removal
- Water leveling control
- Abrasive container 300 kg
- PositionPointer

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Cutting area: x axis – 6084 mm, y axis - 3084 mm, z axis - 320 mm
- - 2 pcs 2d cutting heads
- - Max. Cutting speed 50 m/min
- - Positioning accuracy (pa) +/- 0. 05 mm
- - Repeatability of positioning (ps) +/- 0. 025
- - Tank capacity 15000 l
- - Pump: bystronic bypump ultra+
- - Max. Pressure: 5300 bar
- - Drill spindle for cutting carriage
- - Drill spindle
Qualitative Machine Benefits:
- - Machine in very good condition
- - All documentation available
- - Full-service history available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
