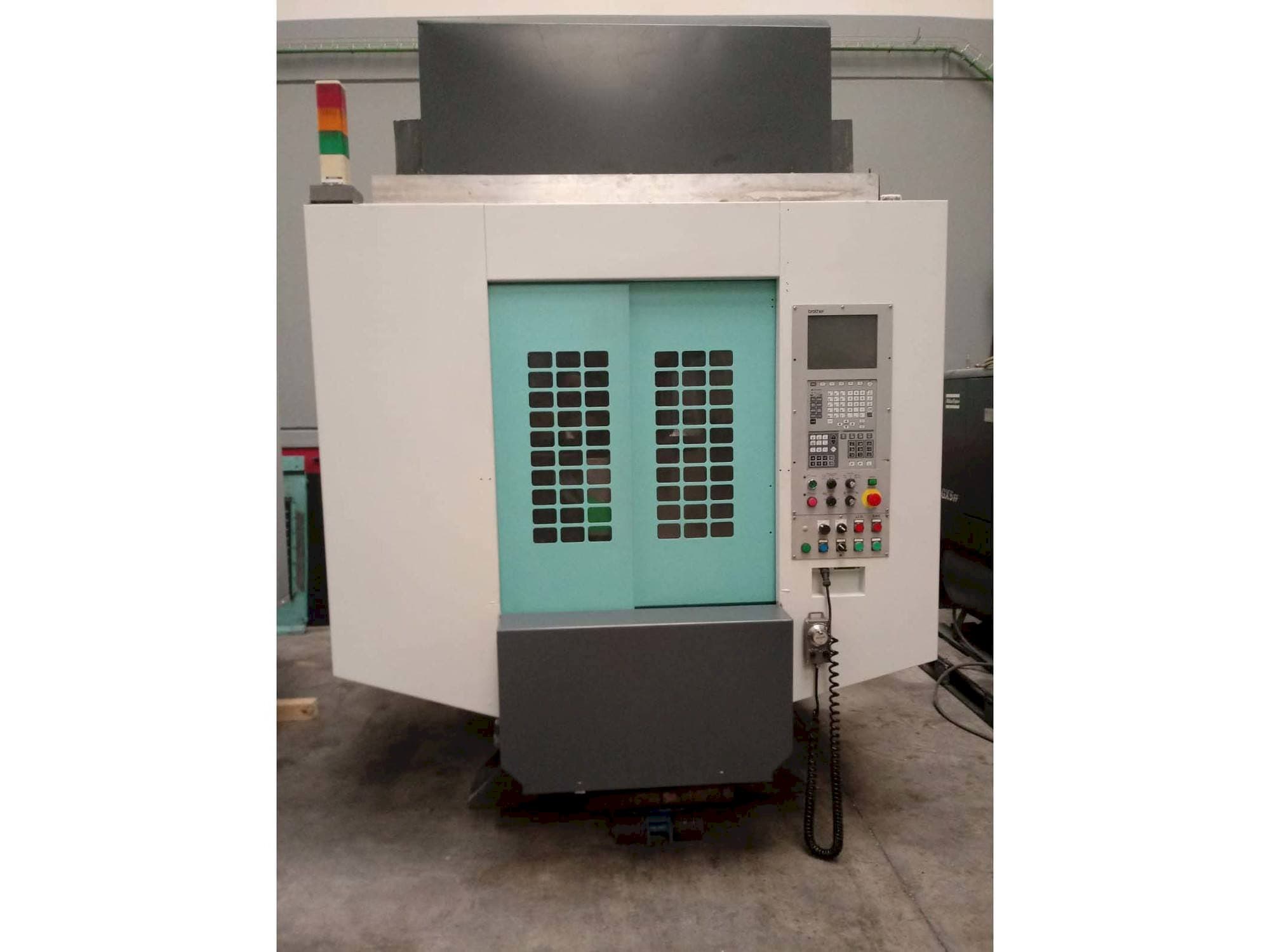

Brother TC-S2DN-O Vertical Machining center

Show in original language

This Brother TC-S2DN-O Vertical Machining center was manufactured in the year 2005. It is equipped with a BROTHER A00 control unit and has 4 axis. The machine has spindle speed of 16000 rpm.

Overview

brand: Brother
year: 2005
MODEL: TC-S2DN-O
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: BROTHER

Technical Information - Brother TC-S2DN-O

General Data

Machine weight: 2000 Kg

Control Unit

Model: A00
Brand: BROTHER

Main drive

Spindle speed range: 16000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 700 mm
X-AXIS Rapid traverse: 50 m/min
Y-AXIS Movement: 400 mm
Y-AXIS Rapid traverse: 50 m/min
Z-AXIS Movement: 320 mm
Z-AXIS Rapid traverse: 50 m/min

Table

Outer length: 800 mm
Outer width: 320 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max tools length : 200 m/m
- - Maximum table load kg: 400kg
- - Distance from head to table: 360 mm
- - Maximum tool weight: 2. 7 kg
- - Number of tools: 21
- - Tool change time: 1. 1 sec
- - Time between chips: 1. 8 sec
- - Head type bt 30
- - Air cooling/external drill
- - 4th axis + rotary joint ddr
Qualitative Machine Benefits:
- - Probe renishaw ts27r
- - Auto/manual door
- - Robot interface: yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
