Brother - Speedio W1000Xd1DE-MIL-BRO-2023-00002

Name: Brother Speedio W1000Xd1
Brand: Brother
SKU: DE-MIL-BRO-2023-00002
Price: 265000 EUR
Availability: InStock

265,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Brother Speedio W1000Xd1 For Sale | gindumac.com

Show in original language

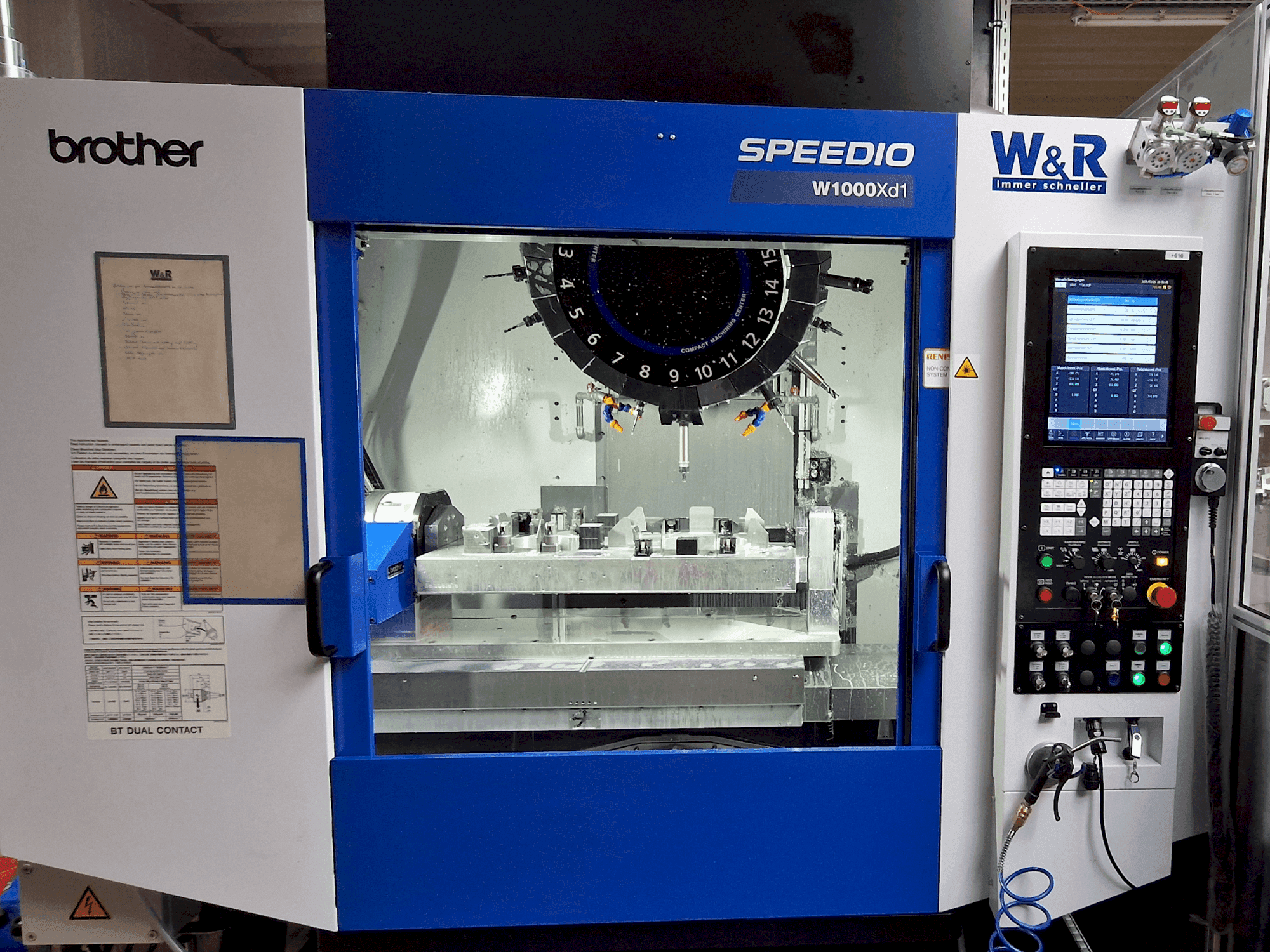

This 4-axis Brother Speedio W1000Xd1 was manufactured in 2023. It features a travel range of X-axis: 1000 mm, Y-axis: 500 mm, Z-axis: 480 mm, and a tool magazine with 21 tools. The spindle operates at speeds up to 16,000 rpm. It supports materials like aluminum and steel, and includes a high-pressure coolant system and chip disposal. Consider the opportunity to buy this Brother Speedio W1000Xd1 vertical machining centre. Contact us for more information about this machine.

Overview

brand: Brother
year: 2023
MODEL: Speedio W1000Xd1
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - Brother Speedio W1000Xd1

Main drive

Spindle speed range: 16000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 480 mm

Additional Information

Additional equipment

Coolant: Through-spindle, 15 bar, Coolant tank 150 L
Lubrication: Automatic grease lubrication (X/Y/Z)
Hydraulic Workpiece Clamping: Pressure: 80–210 bar (mechanically adjustable)
Pump: 210 bar, 100% ED duty
Tank: 27 L
Emulsion Mist Extraction Unit: Suction Capacity: 700 m³/h
Stages: 5-stage filter with V2A pre-filter
Includes: PVC hose (2m, Ø200 mm), Flange connection Ø200 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.
