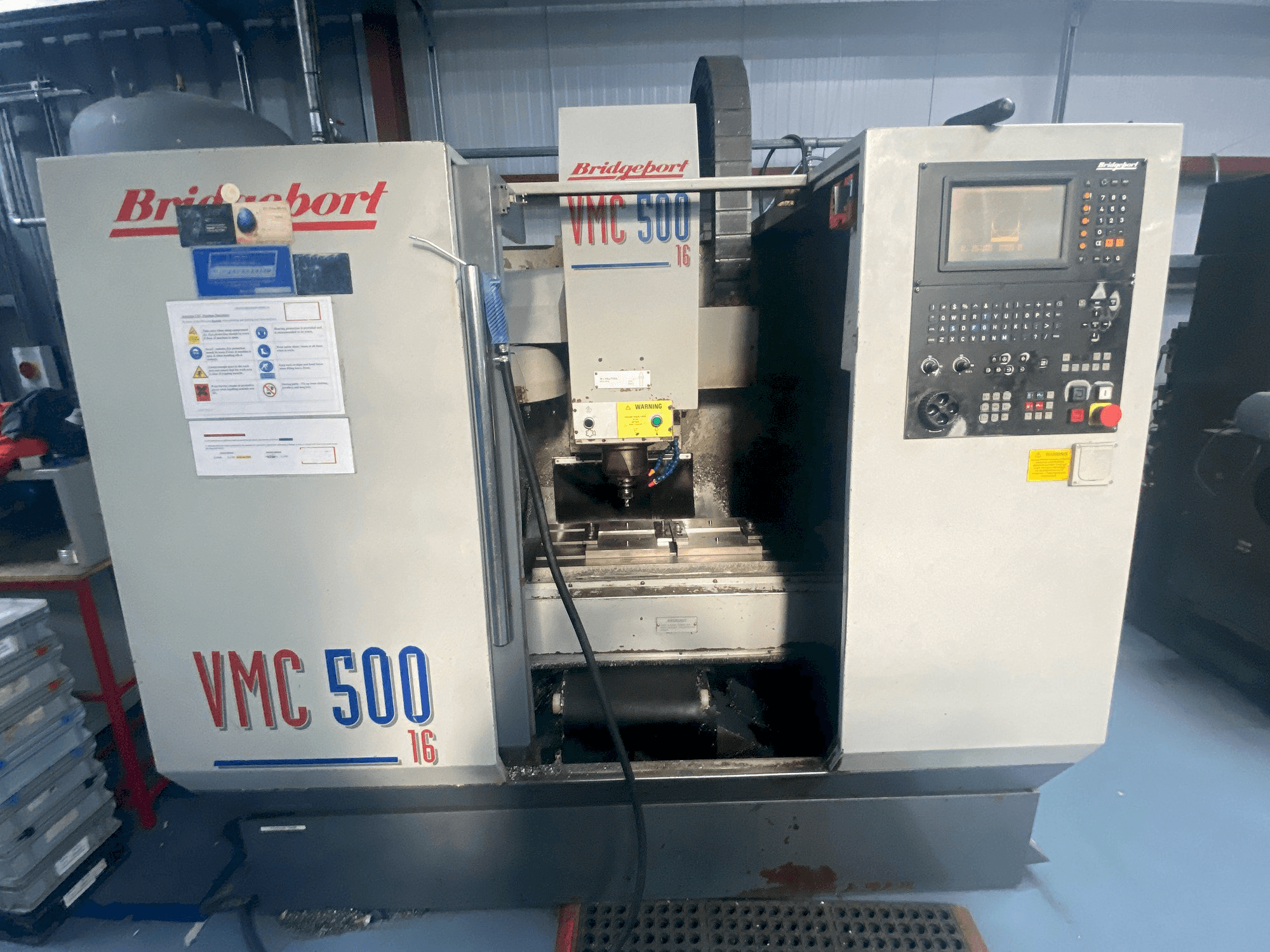

Front view of Bridgeport VMC 500/16 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Bridgeport VMC 500/16

Photo Gallery

Bridgeport - VMC 500/16IE-MIL-BRI-1996-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Bridgeport VMC 500/16 Vertical machining center

Show in original language

This Bridgeport VMC 500/16 Vertical machining center was built in the United Kingdom in 1996. It is operated through a Heidenhain TNC370 control unit. This 3 axis machine works with a spindle speed up to 6000 rpm. It has been working for medical device industry.

Overview

brand: Bridgeport
year: 1996
MODEL: VMC 500/16
application type: Milling
Location: Ireland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Bridgeport VMC 500/16

General Data

Measurements width: 2100 mm
Measurements depth: 2000 mm
Measurements height: 2500 mm
Machine weight: 2500 KG

Control Unit

Model: TNC370
CNC main language: English
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 340 mm
Z-AXIS Movement: 525 mm

Workpiece

Workpiece weight: 500 KG

Table

Outer length: 840 mm
Outer width: 360 mm

Tools

Slots in storage: 16
Max weight: 6 KG
Max tool diameter: 75 mm
Max tool length: 250 mm
Type of tool holder: BT40

Media

Main electronic connection: 400V

Additional Information

Machine history

End product: Medical device parts
Industries: Medical device industry

Machine Benefits

Technical Machine Benefits:
- - Compact vmc

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
