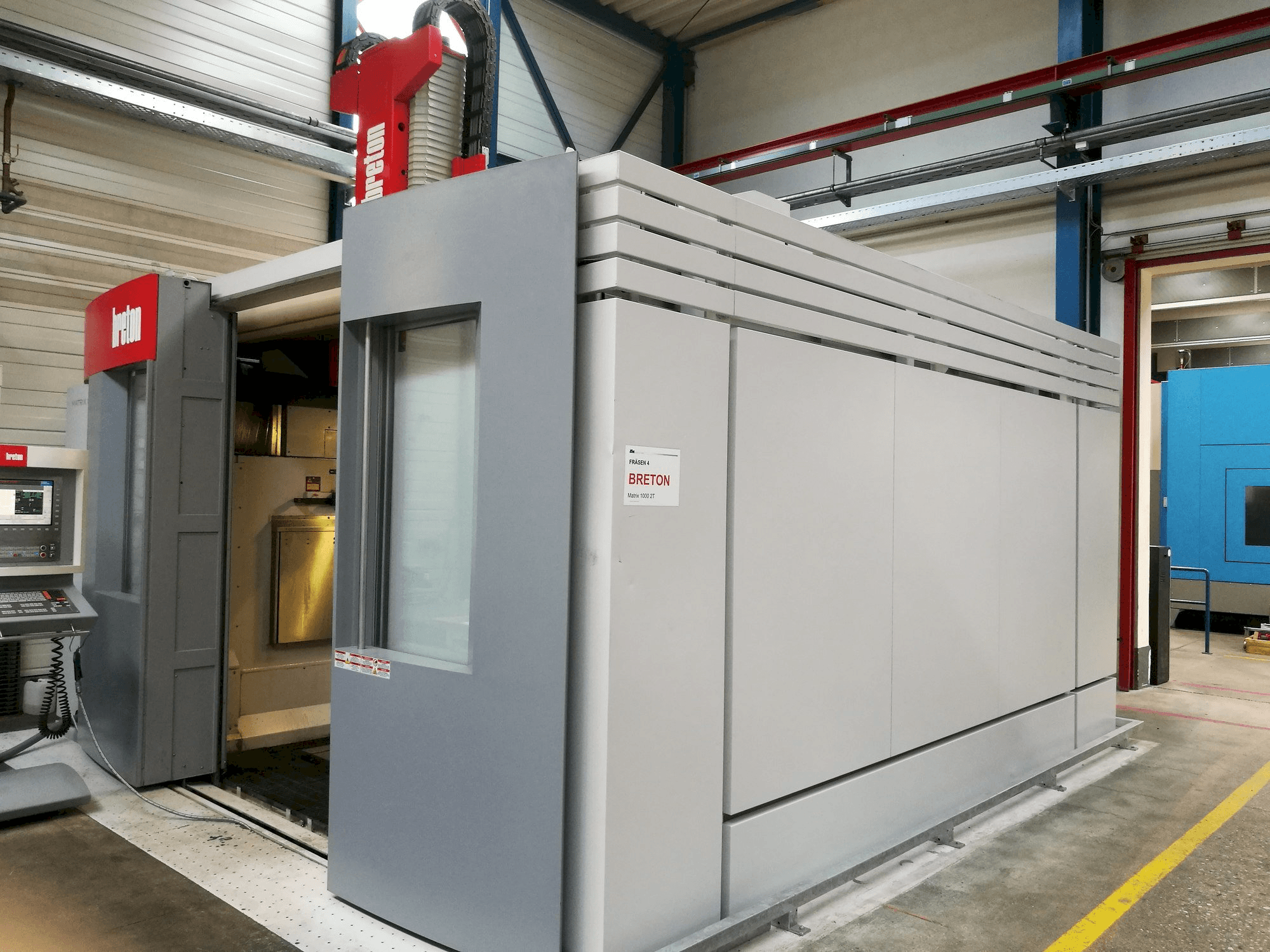

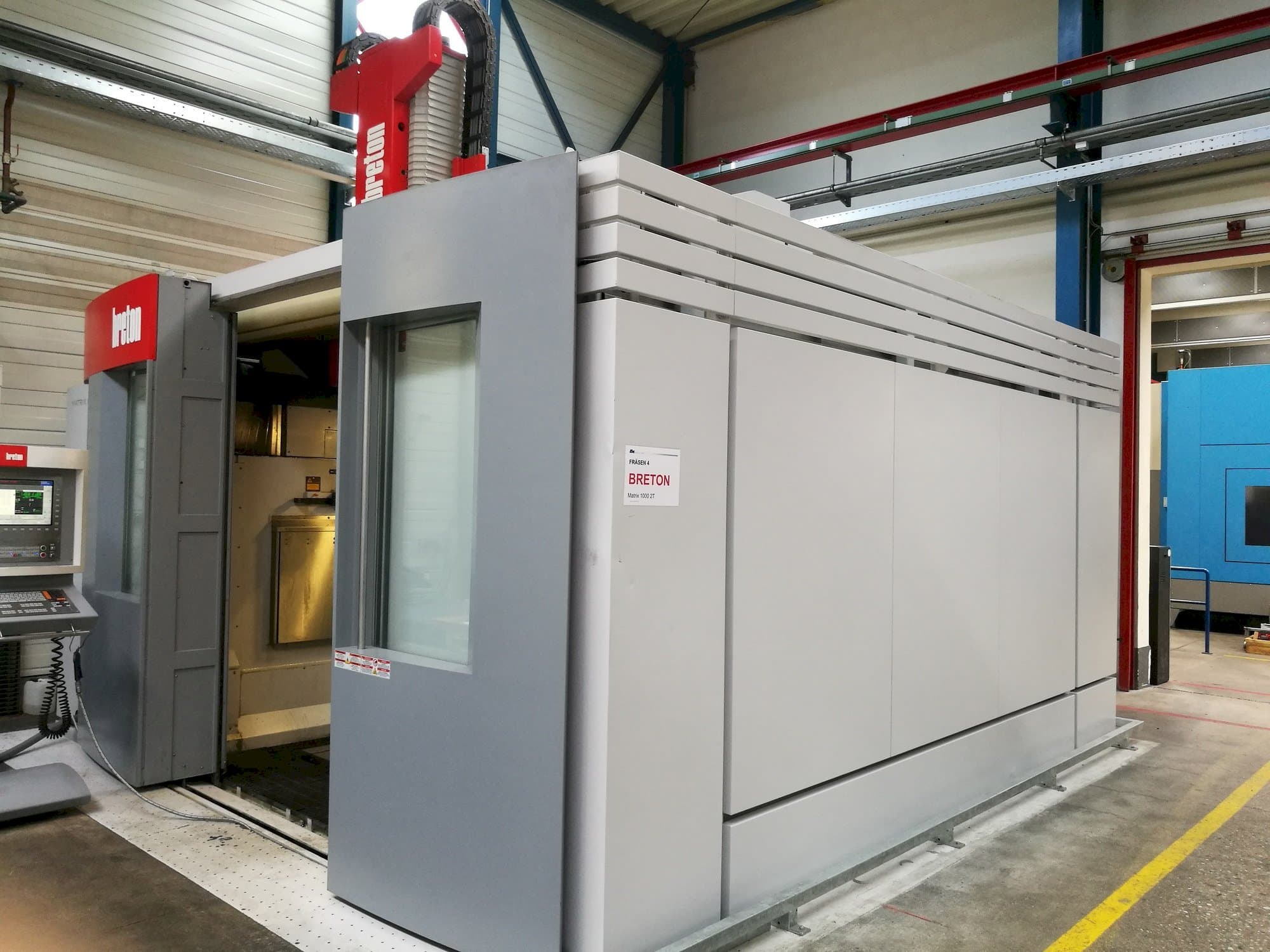

This Breton Matrix 1000 2T DY Machining Center from 2012 was manufactured in Italy. It has a working history of 27556 production hours since then. It is operated through a Heidenhain TNC 530 control unit. This machine can works with a spindle speed range up to 18000 rpm. During the past, this Breton has mainly worked with aluminium and was well serviced. It includes a double chip conveyor, a 1000 l cooling fluid tank, a laser tool measuring systems.
Overview
- brand: Breton
- year: 2012
- MODEL: Matrix 1000 2T DY
- production hours: 27556
- application type: Milling
- Location: Austria
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - Breton Matrix 1000 2T DY
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 530
Dimensions
- Machine Depth: 5300 mm
- Machine Height: 5300 mm
- Machine Weight: 33000 kg
- Table Length: 3000 mm
- Table Width: 2000 mm
Movement
- A-axis Max: 120°
- A-axis Min: 105°
- X-axis Travel: 2200 mm
- Y-axis Travel: 2500 mm
- Z-axis Travel: 1000 mm
Technical Specification
- Max. Tool Weight: 10 kg
- Number of Tools: 60
- Spindle Speed: 18000 RPM
- Through-spindle Coolant: Yes
Additional Information
Additional equipment
- Double chip convoyer
- 1000 l cooling fluid tank
- High pressure cooling 40bar
- Laser Tool Measuring System (BLUM)
- Workpiece Measuring System
- Smog/Fog extraction system
- 3 clamping blocks
Machine Benefits
Qualitative Machine Benefits
- Very good conditions
- Well serviced
Technical Machine Benefits
- 5 axes simultan
- 2016 - new spindle (gmn)
- Big table and wide range of moving
- Turning capabilities
Machine History
Industries
Moulding industry
End product
Moulds
Material type
Aluminium
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
