BOY - 50 EDE-INJ-BOY-2024-00001

Name: BOY 50 E
Brand: BOY
SKU: DE-INJ-BOY-2024-00001
Price: 45000 EUR
Availability: InStock

45,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used BOY 50 E For Sale | gindumac.com

Show in original language

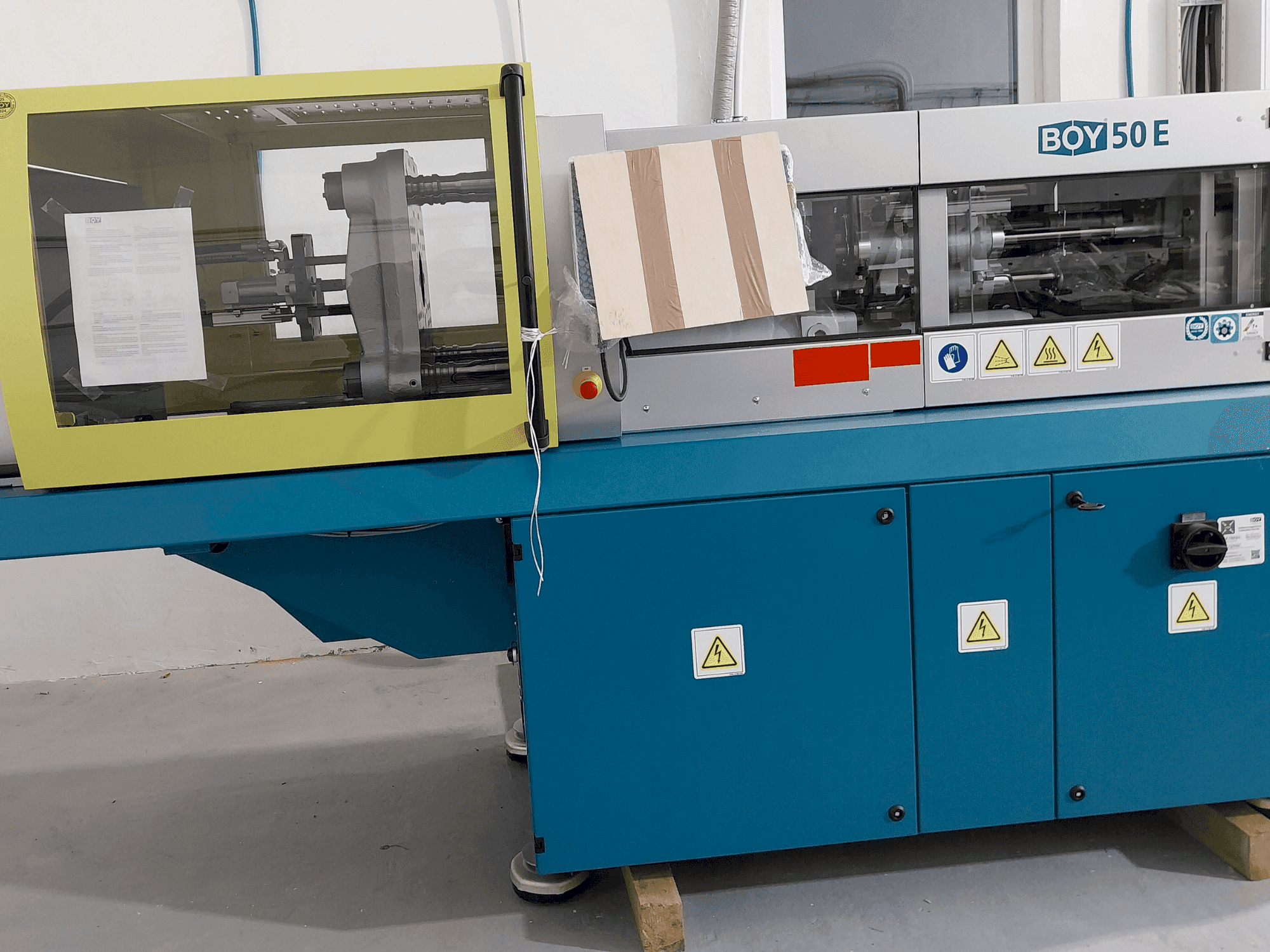

This BOY 50 E hydraulic injection moulding machine was manufactured in 2024. It features a maximum clamping force of 500 kN, a maximum opening stroke of 400 mm, and a total installed power of 16.8 kW. The machine dimensions are compact, with a length of up to 3448 mm and a width of 1095 mm. Consider the opportunity to buy this BOY 50 E hydraulic injection moulding machine. Contact us for more information about this machine.

Overview

brand: BOY
year: 2024
MODEL: 50 E
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - BOY 50 E

General Data

Measurements width: 1095 mm
Measurements depth: 3033-3448 mm
Measurements height: 2010 mm
Machine weight: 3030 kg

Clamping unit

Clamping force: 500 kN
Opening stroke: 400 mm
Distance between bars: 360 x 335 mm
Mould height min: 250 mm
Ejector stroke: 80 mm
Ejector force for / back: 20.4 kN / 13 kN

Media

Oil tank: 200 liters

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Approach speed: 620 mm/sec
- - Close speed: 970 mm/sec
- - High pressure: 265 bar
- - Max. Total tool weight: 600 kg
- - Max. Weight of movable mold half: 400 kg
- - Installed drive power: 11 kw t
- - Otal installed power: 16. 8 kw
- - Hydraulic system pressure: 180
- - Pump volume: 32 cm³
- - Silicone injection molding machine

Extra information

- Machine weight with oil: 2430 kg Max. floor load: 797 Packaging weight (Pallet & film / cardboard sleeve): 100 kg Packaging weight (Wooden crate): 400 kg Clamping Force Minimum clamping force: 200 kN Mold closing force: 24.4 kN Mold opening force: 38.0 kN Max. platen spacing: 650 mm Tie bar diameter: 45 mm Push ejector force: 20.4 kN Pull ejector force: 13 kN

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
