➤ Used BOEHRINGER VDF 400 CM Lathe For sale | gindumac.com

Show in original language

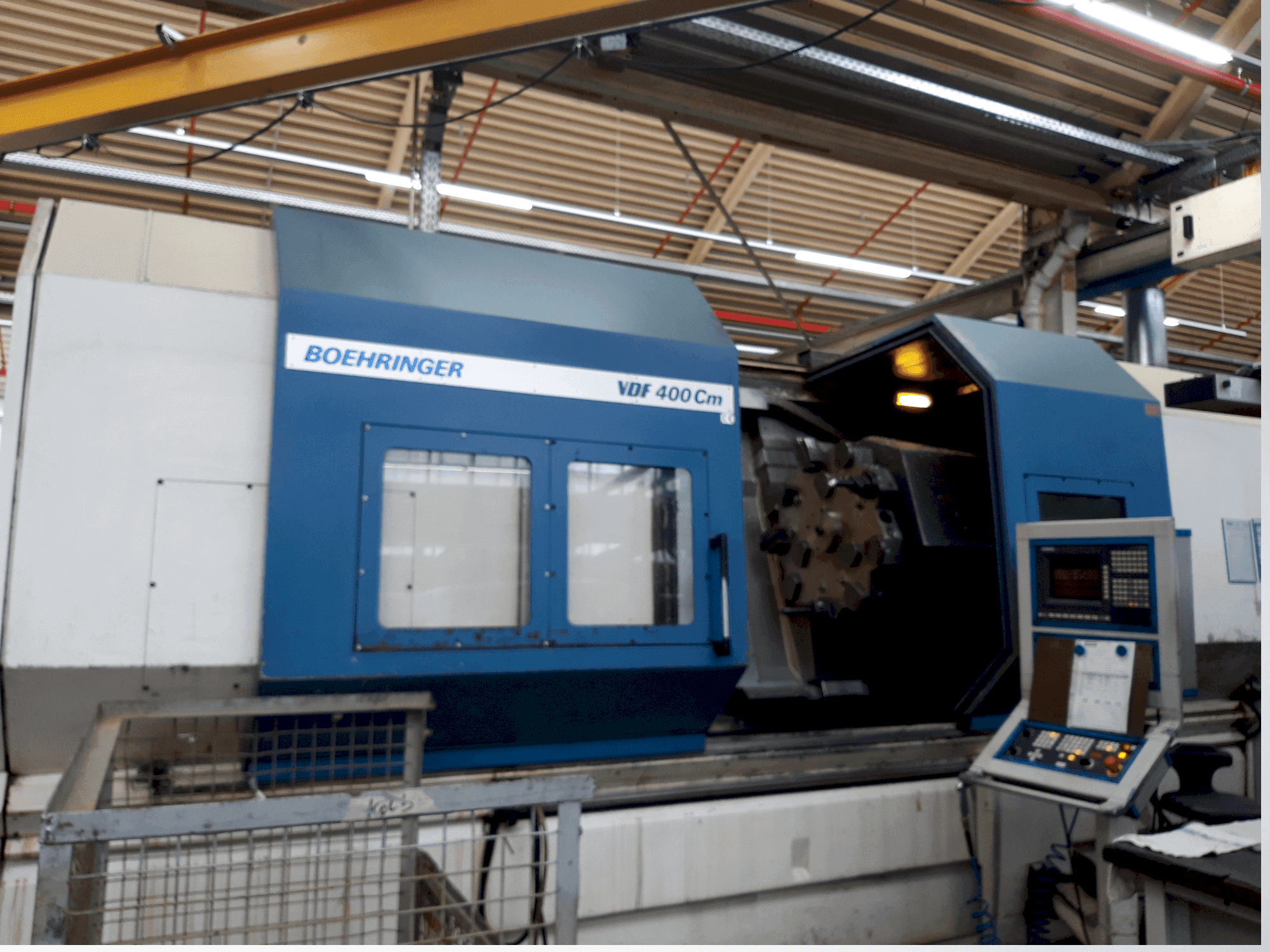

This Lathes was manufactured in 1998. The BOEHRINGER VDF 400 CM features a Siemens Sinumerik 840 C control, a spindle bore of 132 mm, and a maximum turning diameter of 700 mm. It includes a high-capacity coolant system and an integrated chip conveyor for efficient operation. Ideal for those looking to buy this BOEHRINGER VDF 400 CM Lathes. Contact us for more information.

Overview

brand: BOEHRINGER
year: 1998
MODEL: VDF 400 CM
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: 30 12 2024
control unit brand: SIEMENS

Technical Information - BOEHRINGER VDF 400 CM

General Data

Measurements width: 3420 mm
Measurements depth: 5365 mm
Measurements height: 2855 mm
Machine weight: 23000 kg

Control Unit

Model: Sinumerik 840 C
Brand: SIEMENS

Main drive

Spindle speed range: 7-2000 rpm 1/MIN
Spindle motor power: 65 kW (max, 60% ED)
Spindle bore: 132 mm

Workpiece

Workpiece drm over bed: 785/750/750 mm

Additional Equipment

- Chip conveyor: integrated longitudinally with a discharge height of 1250 mm
- Coolant device: large capacity tank (min. 340 l), high delivery rate (40 l/min at 1 bar)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - High feed force
- - Dynamic ac servo motor per axis
- - Collision protection for drive elements
- - Programmable coolant supply for each tool
- - Turning length in mm 2000.
- - Swing diameter above the bed in mm 750.
- - Traverse path of the bed slide 2224.
Qualitative Machine Benefits:
- - Simple maintenance and installation of chip conveyor
- - High coolant delivery rate supports modern cutting and drilling tools

Extra information

- Steady rest: Originally installed but removed due to defectiveness. Tailstock: Included with a quill outer diameter of 130 mm and stroke of 120 mm. Hydraulic unit: Central unit for various machine functions with variable clamping pressure adjustment. Feed drive: Features high dynamics and protection class IP 64. Main spindle head: DIN 55026-A15.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
