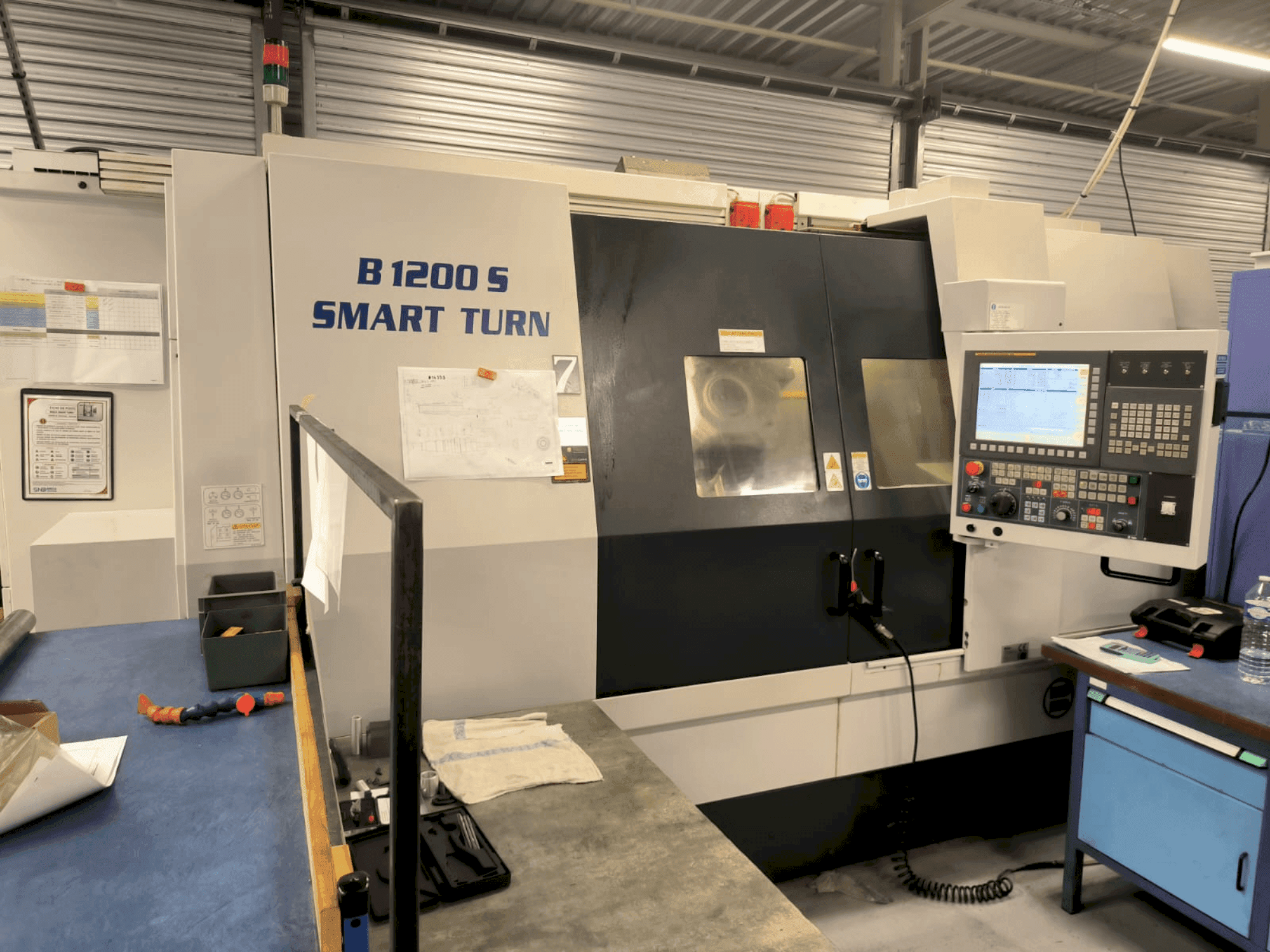

This 5-axis Biglia B1200S SMART TURN lathe was manufactured in 2014. It features a Fanuc 31i control unit, a maximum turning diameter of 750 mm, and a turning length of 1260 mm. Equipped with a tool magazine capacity of 40 posts and a milling head maximum speed of 8000 rpm. Ideal for complex machining tasks, the Biglia B1200S SMART TURN we have for sale represents a significant opportunity. For more information about this lathe, please reach out to us.
Overview
- brand: Biglia
- year: 2014
- MODEL: B1200S SMART TURN
- production hours: 7300
- application type: Turning
- Location: France
- machine type: Turn-Mill Centre
- control unit brand: FANUC
Technical Information - Biglia B1200S SMART TURN
Control Unit
- Control Brand: FANUC
- Control Model: 31i
Dimensions
- Machine Depth: 5500 mm
- Machine Height: 2400 mm
- Machine Weight: 8500 kg
Movement
- B-axis Max: 105°
- B-axis Min: 105°
- C-axis: 0.001°
- Number of Axes: 5
- X-axis Travel: 510 mm
- Y-axis Travel: 120 mm
- Z-axis Travel: 1300 mm
Technical Specification
- Spindle Power: 30 kW
- Spindle Speed: 4000 RPM
Additional Information
Additional equipment
- Lubrication tank with pump.
- Main spindle // counter spindle // milling spindle
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
