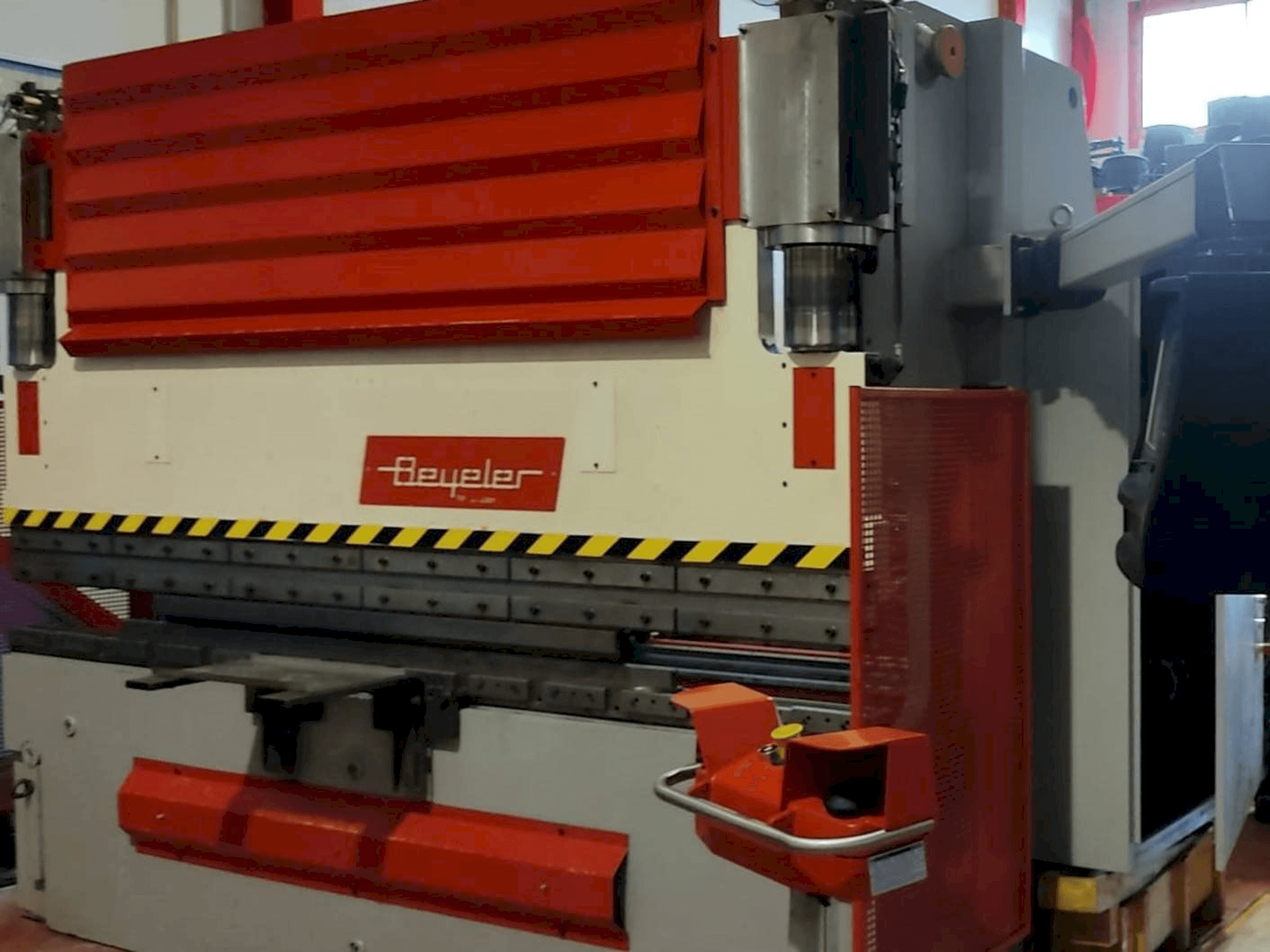

BEYELER - PR6 1500 x 3100ES-BEN-BEY-2000-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Control to y1/y2/x/r/z1/z2 axes and compensation
  • - Promecan punch clamping
  • - Promecan matrix and center groove tie-downs
  • - Distance between uprights 2800 mm
  • - Maximum course 215 mm
  • - Maximum opening (without intermediates) 480 mm
  • - Gooseneck 410 mm
  • - Electric motor power: 7. 5 kw
  • - Approach speed 120 medium 200 maximum mm/s
  • - Working speed 9 mm/s return speed 120 mm/s
• Qualitative Machine Benefits:
  • - X axis: speed 400 mm/s. X axis: travel 660 mm
  • - R axis: speed 120 mm/s r axis: travel 220 mm
  • - Z1/z2 axis: speed 500 mm/s z1/z2 axis: travel 2750 mm
