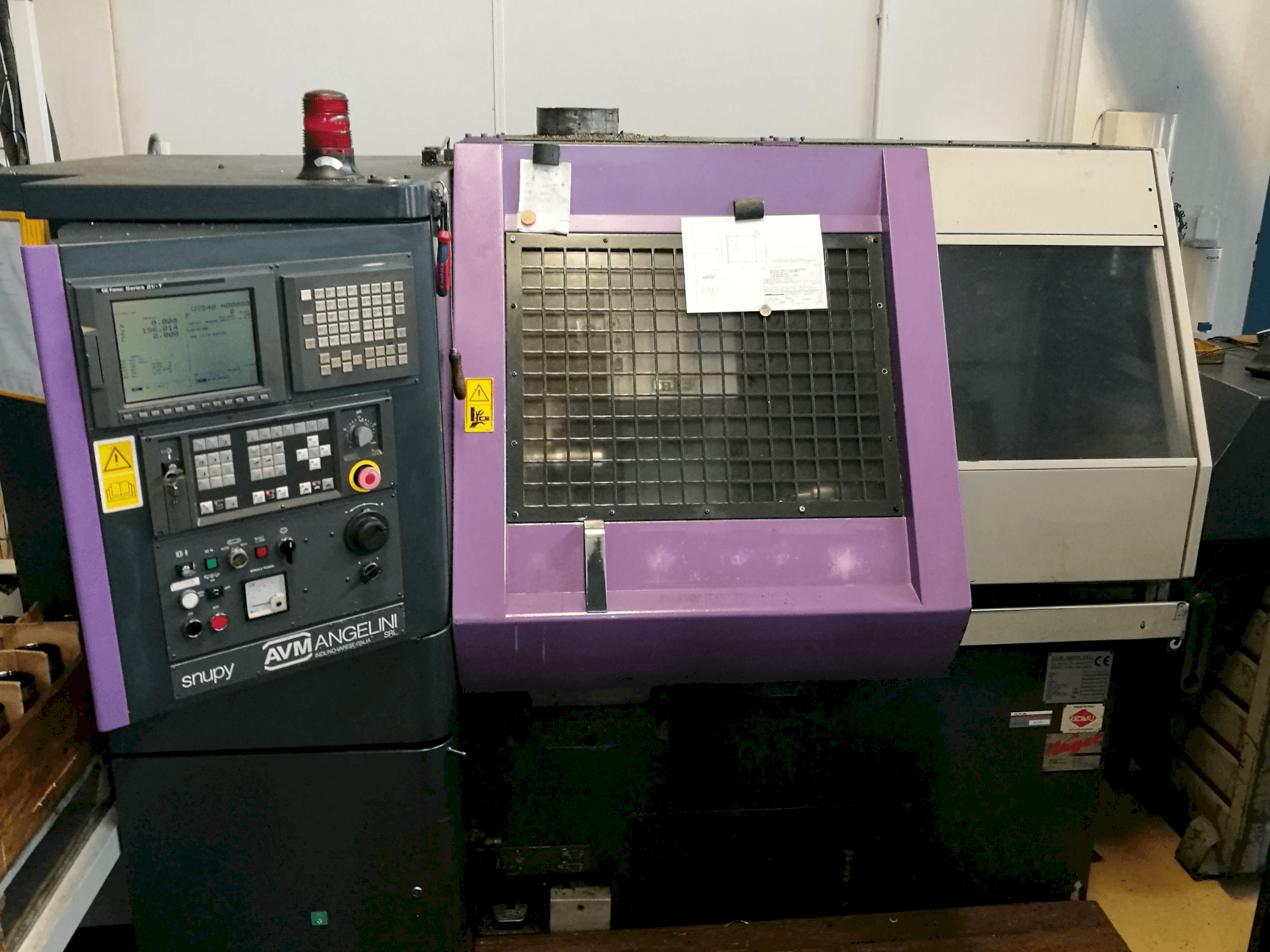

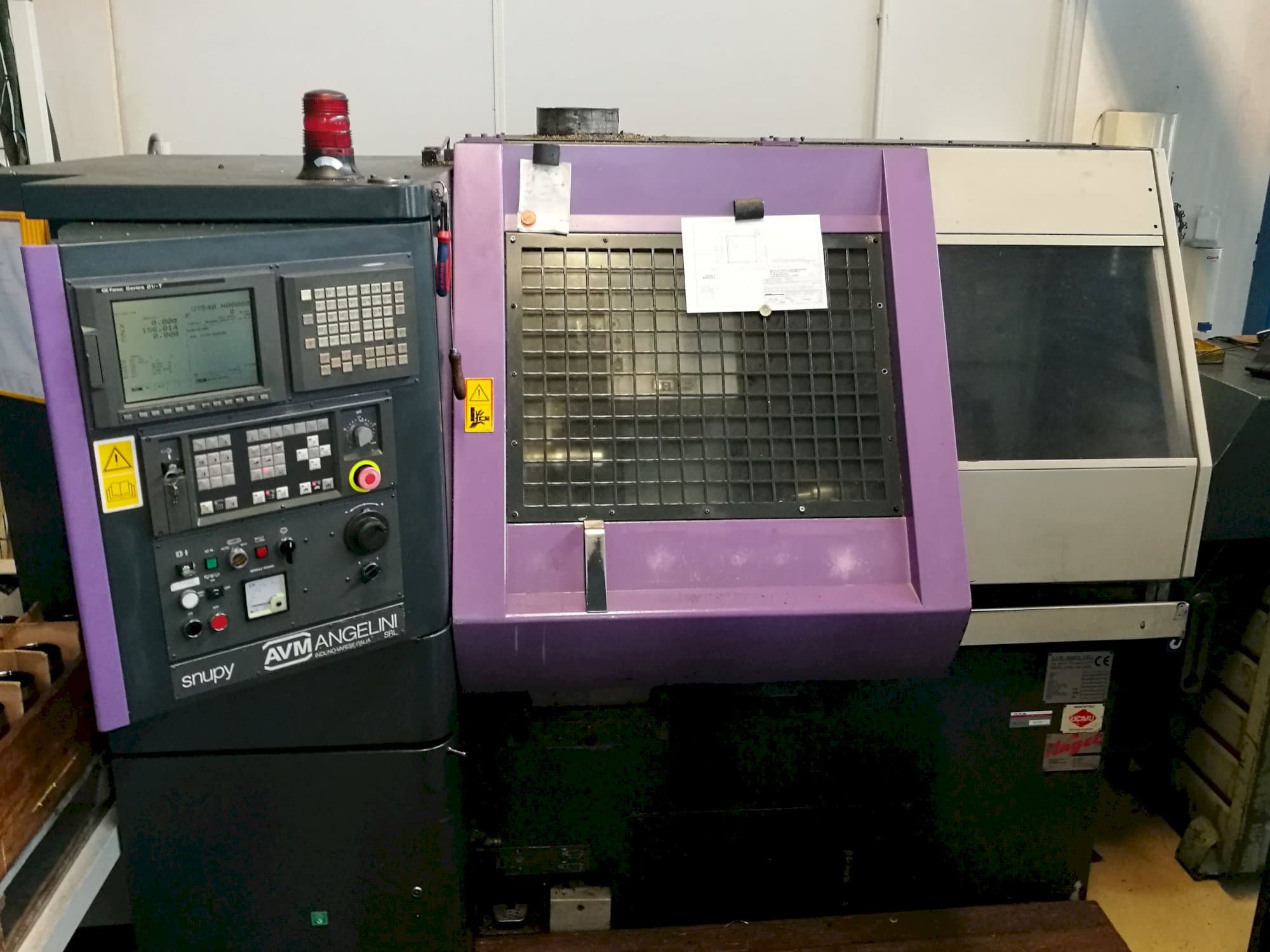

This AVM Angelini Snupy 21TI Lathe from 1999 was manufactured in Italy and has a production record of approximately 60000 hours since then. Operated through a FANUC Series 21i-T Control unit, this machine has mainly worked with steel and aluminum up to 6 mm of thickness in the past. It incorporates a driven C-axis and a spindle speed up to 6000 rpm.
Overview
- brand: AVM Angelini
- year: 1999
- MODEL: Snupy 21TI
- production hours: 60000
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - AVM Angelini Snupy 21TI
General Data
- Measurements width: 3650 mm
- Measurements depth: 1600 mm
- Measurements height: 1750 mm
- Machine weight: 3500 kg
Control Unit
- Model: Series 21i-T
- CNC main language: German
- CNC language customizable: Yes
- Brand: FANUC
Main drive
- Number of spindles: 1
- Spindle speed range: 6000 rpm 1/MIN
Movement
- X-AXIS Movement: 16000 mm
- Z-AXIS Movement: 20000 mm
Workpiece
- Workpiece drm: 250 mm
Turret
- Number of turrets: 1
Tools
- Slots in storage: 12
- Type of tool holder: VDI 30
Media
- Power consumption: 15 kW
- Chip conveyor: Yes
- Internal cooling: Yes
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
