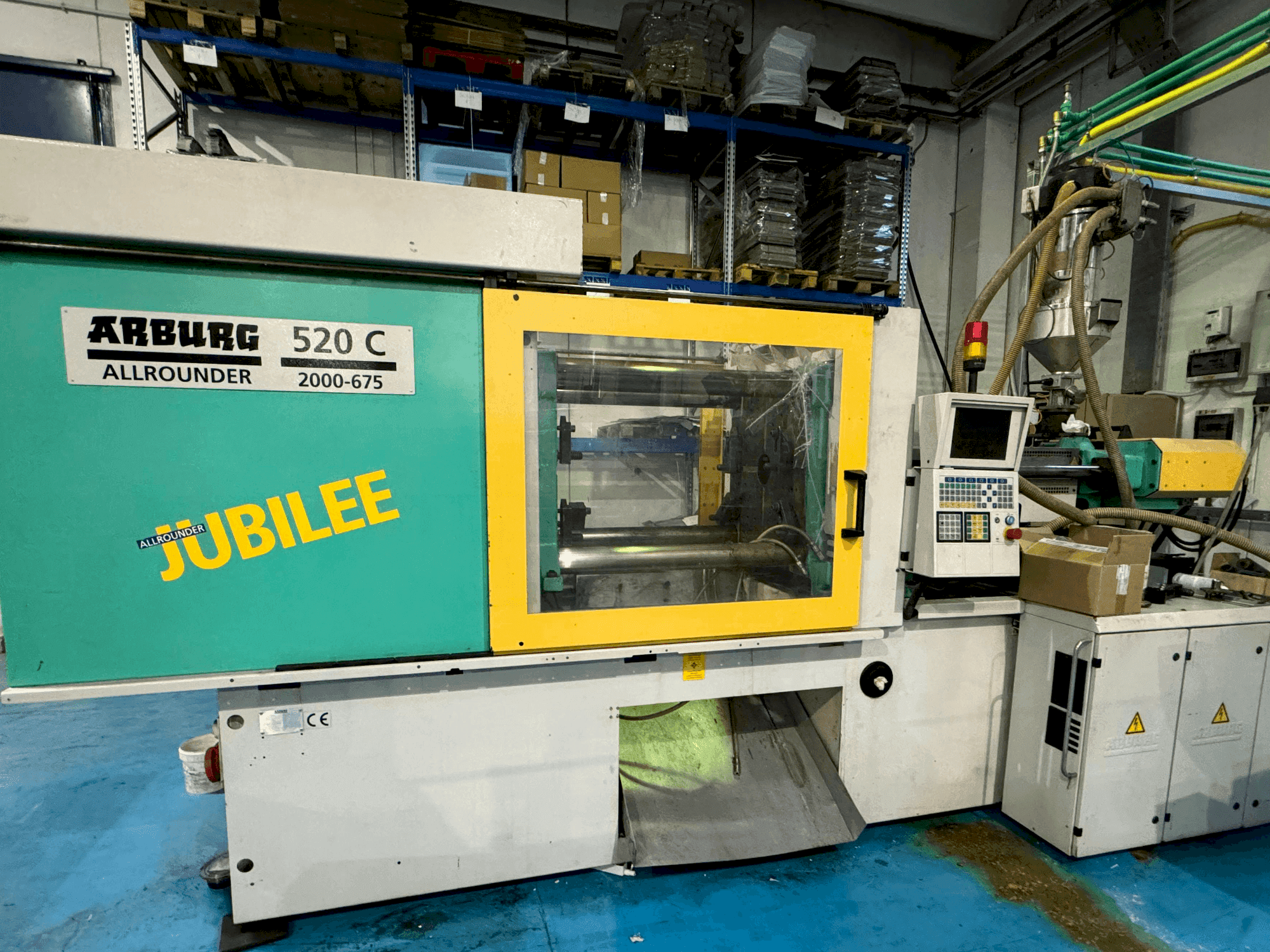

Front view of Arburg ALLROUNDER CENTEX 520 C 2000-675 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Arburg ALLROUNDER CENTEX 520 C 2000-675

Photo Gallery

Arburg - ALLROUNDER CENTEX 520 C 2000-675IT-INJ-ARB-1998-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
ARBURG ALLROUNDER CENTEX 520 C 2000-675 Injection moulding machine

Show in original language

This ARBURG ALLROUNDER CENTEX 520 C 2000-675 Injection moulding machine was manufactured in 1998 in Germany. It has a clamping force of 2000 kN, an opening stroke of 650 mm and is equipped with an injection unit with 55mm screw diameter. The plate dimensions are 715x715 mm and distance between columns is 900 mm. It is still under power and can be inspected on-site anytime.

Overview

brand: Arburg
year: 1998
MODEL: ALLROUNDER CENTEX 520 C 2000-675
production hours: 0
application type: Injection Moulding
Location: Italy
machine type: Hydraulic Injection Moulding Machine

Technical Information - Arburg ALLROUNDER CENTEX 520 C 2000-675

General Data

Machine weight: 6630 kg

Injection Unit

Screw diameter: 55 mm
Injection pressure: 1720 bar
Heating capacity: 14.9 kW

Clamping unit

Clamping force: 2000 kN
Opening stroke: 650 mm
Distance between bars: 900 mm
Size of mold platens: 715 x 715 mm

Media

Main electronic connection: 400 V 3 ~ 50 HZ
Pump drive power: 1 x 30 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

ARBURG ALLROUNDER CENTEX 520 C 2000-675 (1998) - TECH SPECS (ITALIAN).pdf
