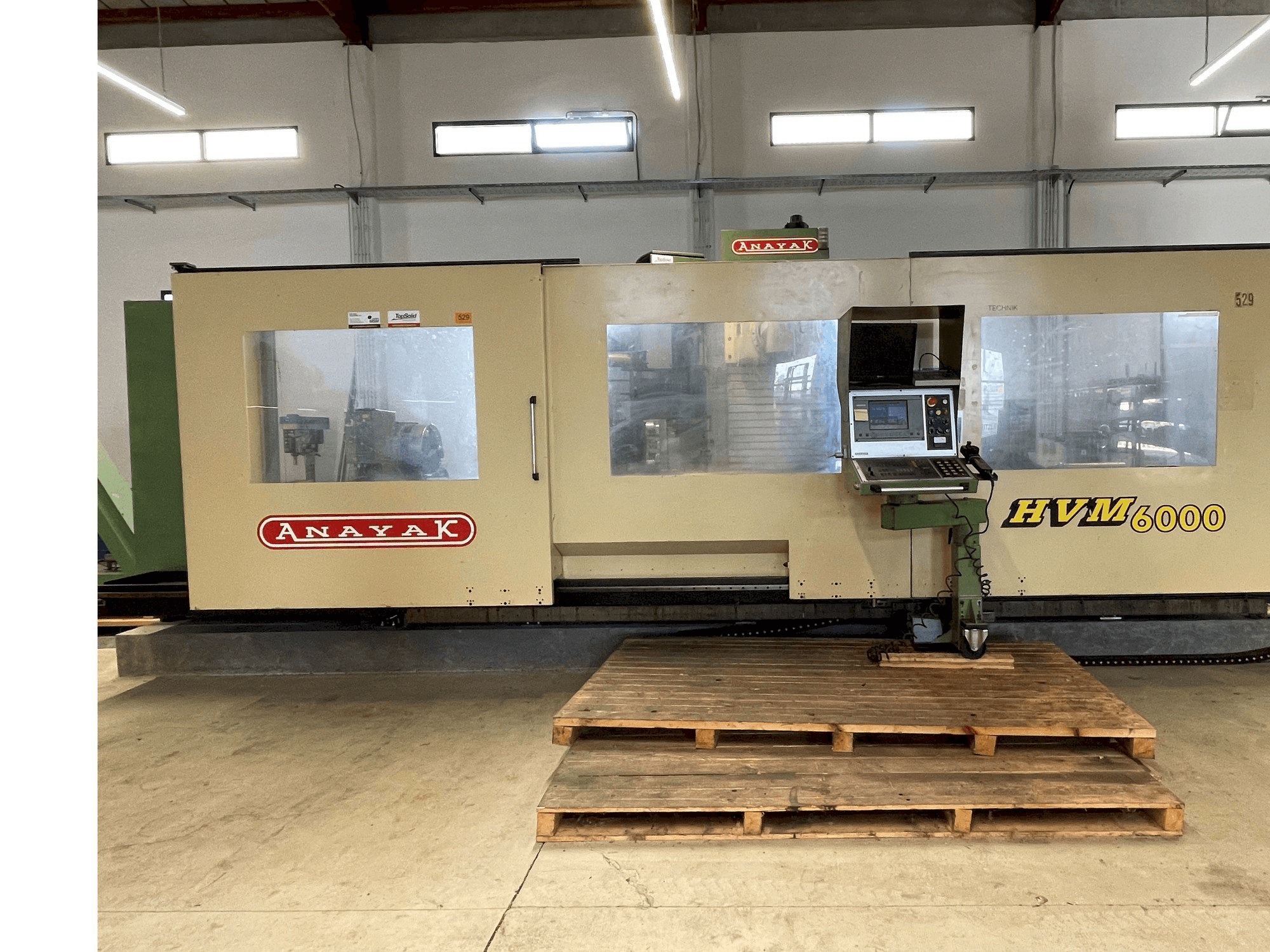

ANAYAK HVM-6000 multiangular head Milling Machine

Show in original language

This ANAYAK HVM-6000 multiangular head Milling Machine was built in 2001 in Spain. It has been on for 15739 hours, of which 6542 are program run hours. With an HEIDENHAIN control unit, this 5 axis machine can works with a spindle speed range of 60 - 3000 rpm.

Overview

brand: ANAYAK
year: 2001
MODEL: HVM-6000
production hours: 15739
application type: Milling
Location: Germany
machine type: Gantry Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - ANAYAK HVM-6000

Control Unit

Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 60 - 3000 1/MIN

Movement

X-AXIS Movement: 5300 mm
Y-AXIS Movement: 1000 mm
Z-AXIS Movement: 1050 mm

Table

Outer length: 6000 mm
Outer width: 1000 mm

Tools

Type of tool holder: ISO-7388/1 DIN 69871-A

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Multiangular head 45º
- - Angular positioning b and c axes automatic
- - Hydraulical rotation blocking
- - Motor power 22,5/34 kw
- - Pump flow 24 l/min
- - Working pressure 130 bar
- - Tank capacity 250l
- - Spindle taper iso 50

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
