AgieCharmilles - CUT 300MSKR-EDM-AGI-2016-00001

Name: AgieCharmilles CUT 300MS
Brand: AgieCharmilles
SKU: KR-EDM-AGI-2016-00001
Price: 70000 EUR
Availability: InStock

70,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used AgieCharmilles CUT 300MS For Sale | gindumac.com

Show in original language

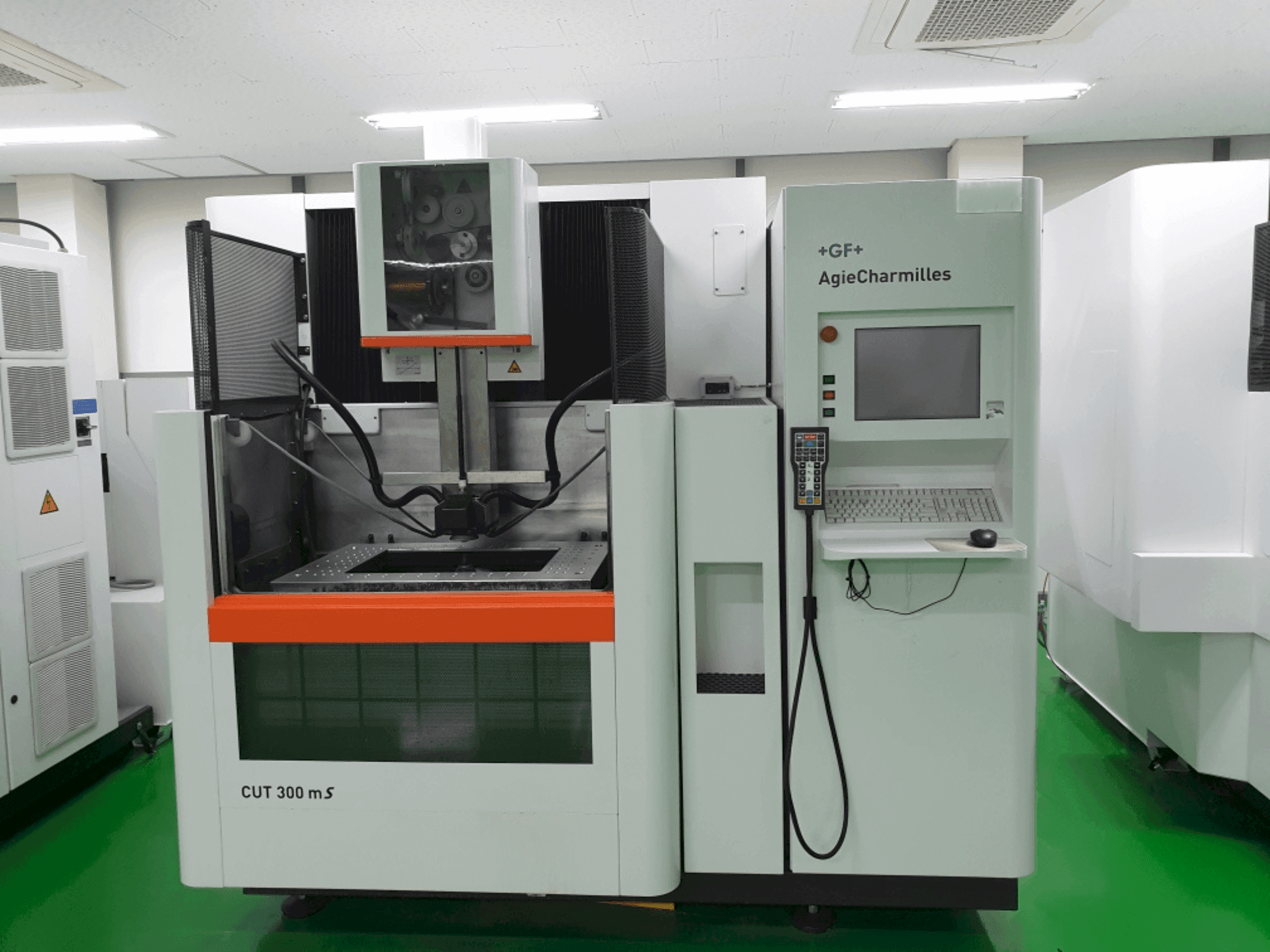

This 5-axis AgieCharmilles CUT 300MS was manufactured in 2016, featuring submerged wire-cutting technology. It supports a maximum workpiece size of 1200 × 700 × 400 mm and a weight up to 1500 kg. The machine offers rapid movement across X, Y, U, V axes at 9.8 m/min and includes integrated collision protection. If you are looking to get high-quality precision cutting capabilities, consider the AgieCharmilles CUT 300MS machine we have for sale. Contact us for more information.

Overview

brand: AgieCharmilles
year: 2016
MODEL: CUT 300MS
application type: EDM
Location: South Korea
machine type: Wire EDM Machine

Technical Information - AgieCharmilles CUT 300MS

General Data

Measurements width: 2600 mm
Measurements depth: 2600 mm
Measurements height: 2340 mm
Machine weight: 3300 kg

Main drive

Number of axis: 5

Movement

X-AXIS Movement: 550 mm
X-AXIS Rapid traverse: 9.8 m/min
Y-AXIS Movement: 350 mm
Y-AXIS Rapid traverse: 9.8 m/min
Z-AXIS Movement: 400 mm
V-Axis Movement: ±45 mm
V-Axis Rapid traverse: 9.8 m/min
U-Axis Movement: ±45 mm
U-Axis Rapid traverse: 9.8 m/min

Workpiece

Workpiece weight: 1500 kg

Injection Unit

Injection pressure: 20 bar

Media

Dielectic tank: 1200 liters

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Workpiece dimensions (l×w×h): 1200 × 700 × 400 mm
- - Dimensions of table (l×w): 860 × 650 mm
- - Floor-to-table distance: 1000 mm
- - Integrated collision protection: standard on 5 axes
- - Max. Taper: ±45°/400 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
