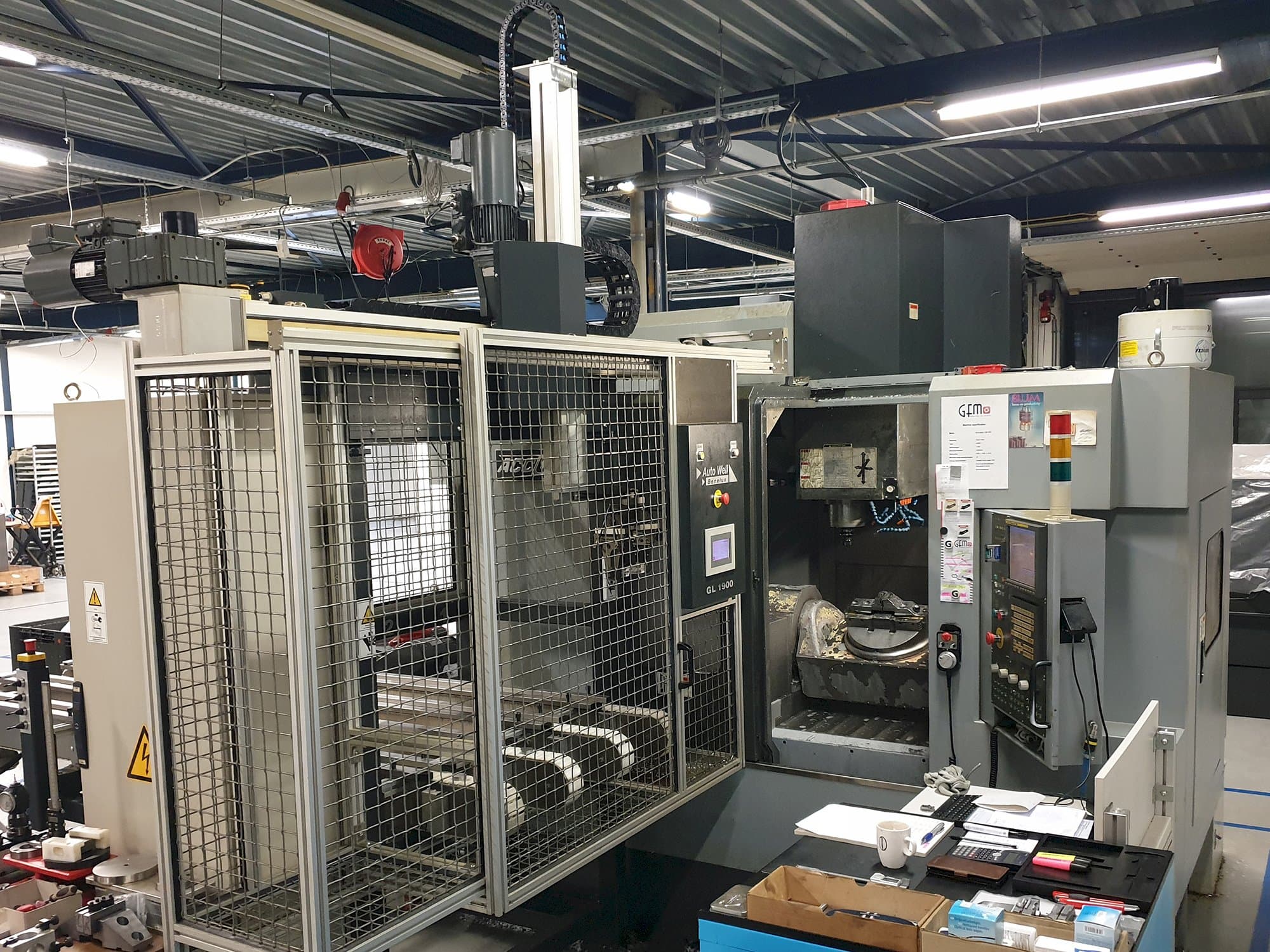

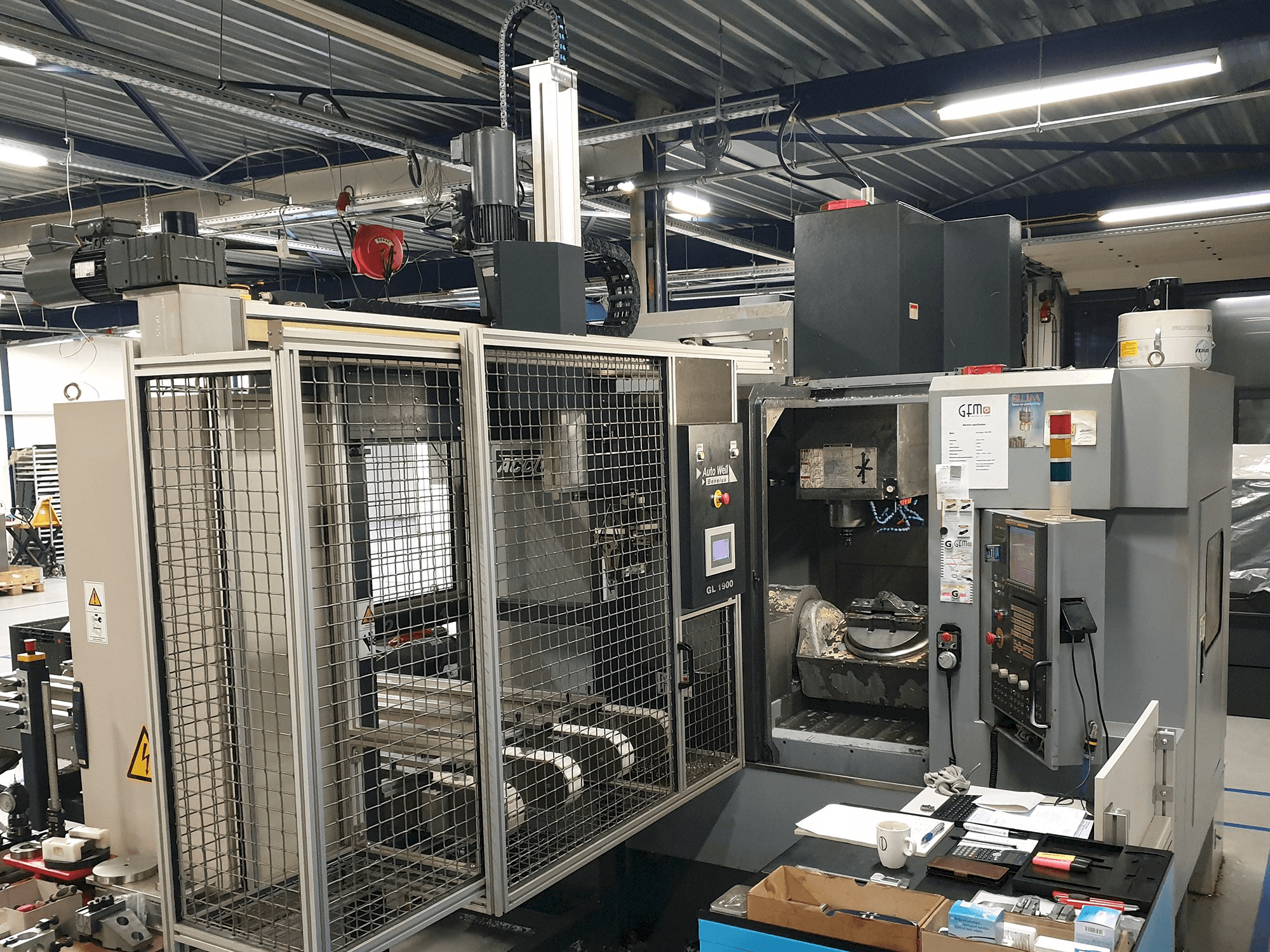

- ACCUWAY UM - 350V5 Vertical Machining Center
This ACCUWAY UM - 350V5 Vertical Machining Center was manufactured in 2009 in Taiwan and has a production time of 35000 hours. Operated through a FANUC Series 18i-M Control unit, this 5 axis machine counts with 32 tool slots. It incorporates a rotary table with a dimension of 350mm. Its meehanite cast structure keeps long-term accuracy, and is capable of performing with a maximum workpiece diameter of 450 mm. A robot and several tools are included within the machine.
Overview
- brand: ACCUWAY
- year: 2009
- MODEL: UM - 350V5
- production hours: 35000
- application type: Milling
- Location: Netherlands
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - ACCUWAY UM - 350V5
Control Unit
- Control Brand: FANUC
- Control Model: Series 18i-M
Dimensions
- Machine Depth: 2200 mm
- Machine Height: 3200 mm
- Machine Weight: 9500 kg
- Table Length: 350 mm
Movement
- X-axis Travel: 700 mm
- Y-axis Travel: 550 mm
- Z-axis Travel: 470 mm
Technical Specification
- Through-spindle Coolant: Yes
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Always working without any downtime
- Yearly inspected
- Perfect conditions
Technical Machine Benefits
- Meehanite cast structure keeps long-term accuracy
- Rotary table and integral 5 axes motion saddle
- Max. Workpiece of 450 mm of diameter
Machine History
End product
Moulds
Material thickness
20 mm
Material type
Aluminium
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
